Description

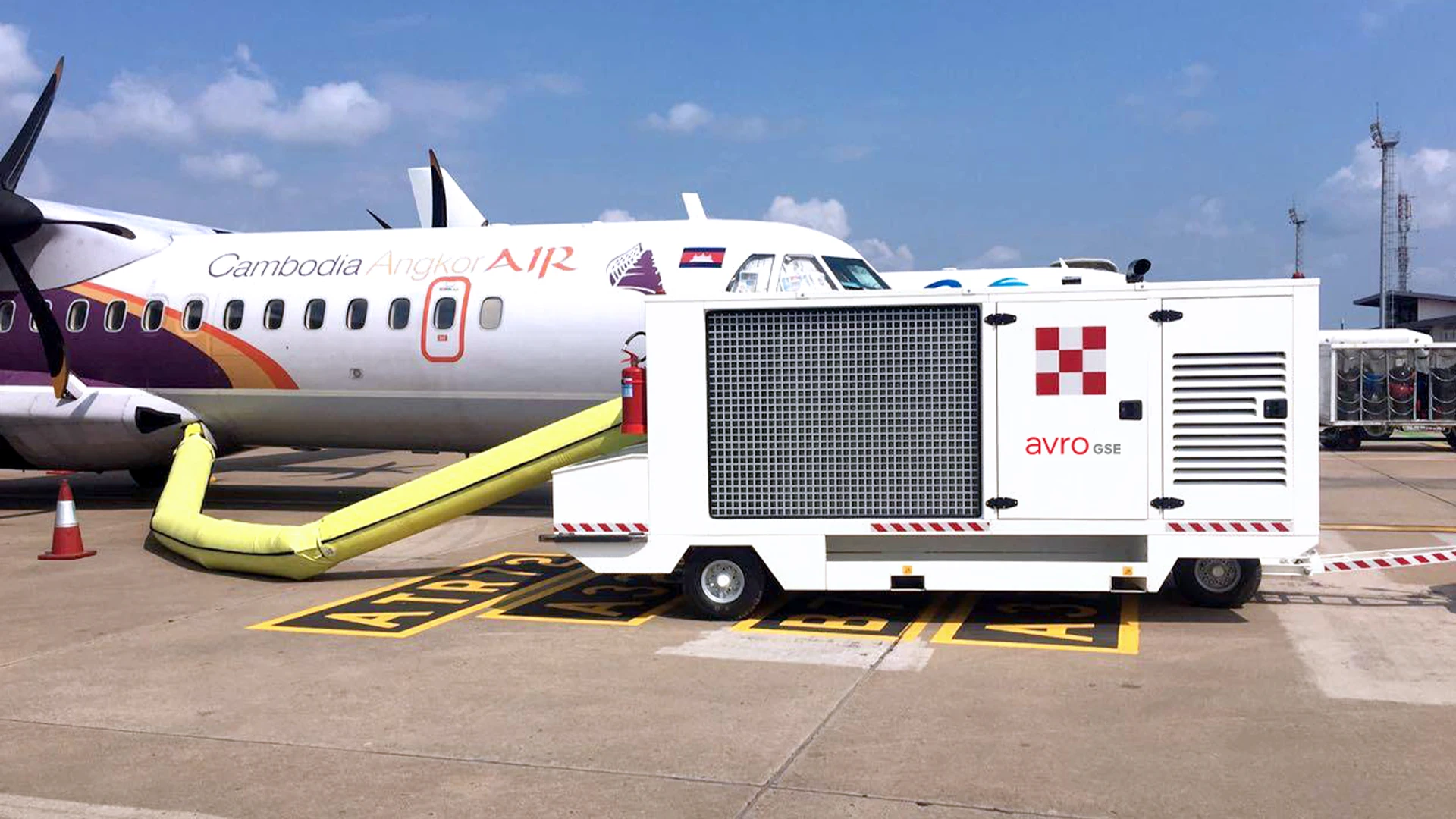

Maximize your fleet utilization with the ACU60’s powerful 60-ton capacity that services wide-body aircraft and multiple narrow-body planes simultaneously. You’ll reduce turnaround times with faster cooling that gets aircraft ready for departure ahead of schedule, improving on-time performance and customer satisfaction. The dual independent refrigerant circuits provide redundancy that prevents costly service interruptions—if one circuit fails, the other continues operating. Your investment pays off through higher aircraft throughput and reduced ground delays that impact your bottom line.
Features and Benefits
- Equipped with independent refrigerant circuits using R410A refrigerant
- Diesel-powered generator with a 4-stroke, water-cooled engine operating at 1,500 rpm
- Control board with engine start/stop, fuel level display, and emergency stop button
- Includes safety features like alarms for compressor overheating, high/low coolant pressure, and low fuel
- Optional features include 28 VDC output, 200/115 VAC 400 Hz, air heater, and truck-mounted configuration
| Characteristics | |
|---|---|
| Nominal Cooling Capacity of Compressor @ 60 Hz | 60 tons |
| Independent Refrigerant Circuits | 2 |
| Nominal Air Flow at PCA Outlet | 160 kg/min |
| Pressure at PCA Outlet | 7000 PA |
| Ambient Conditions / Sea Level | DB 35°C – 48% RH |
| Power Supply | 400 V / 50 Hz |
| Air Outlet | 1 |
| Refrigerant | R410A |
| Main Dimensions | |
|---|---|
| Length | 4,825 mm |
| Width | 2,280 mm |
| Height | 2,180 mm |
