PT1500 – Tow Tractor

PT1500

Request Quote Spec Sheet

Description

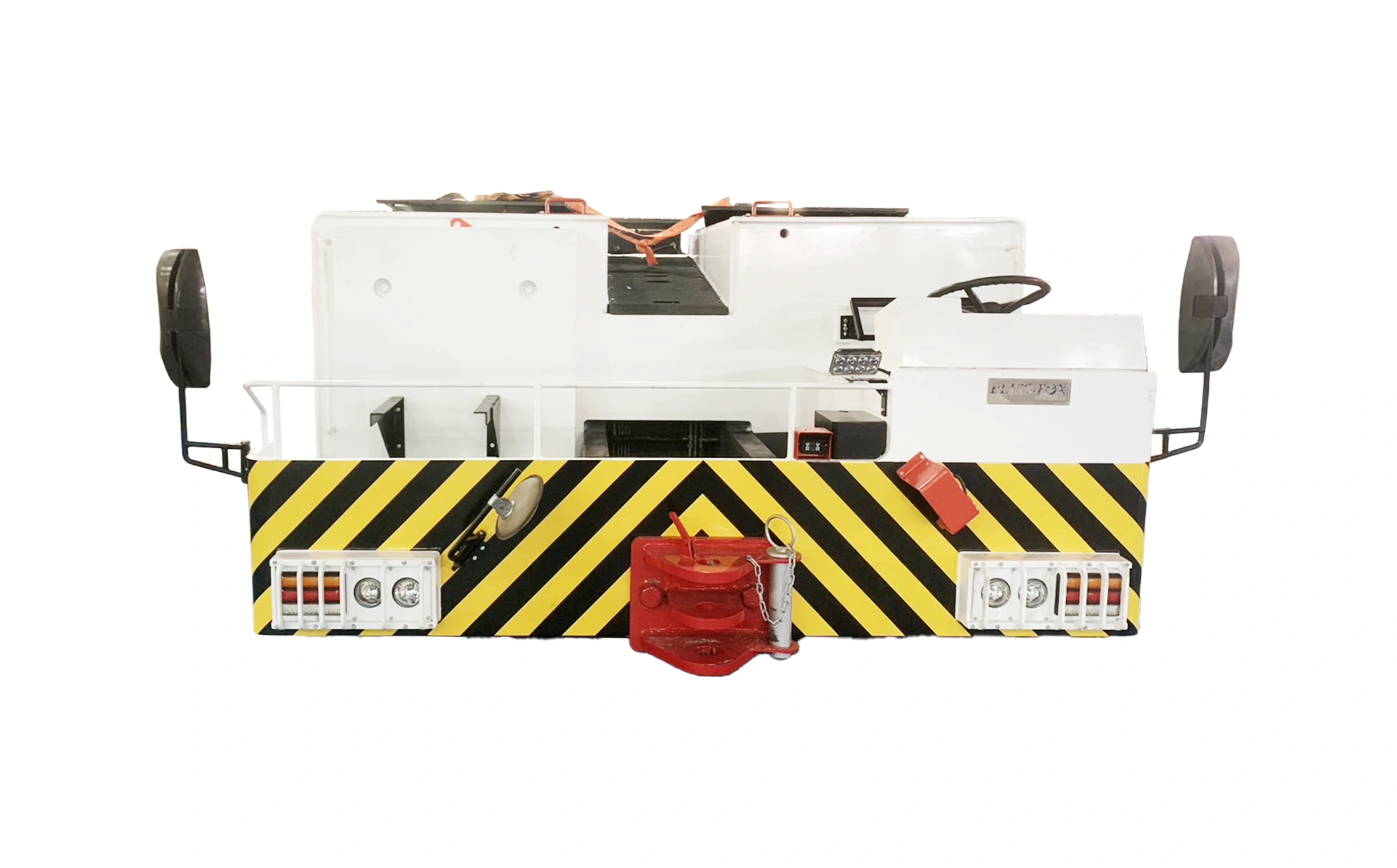

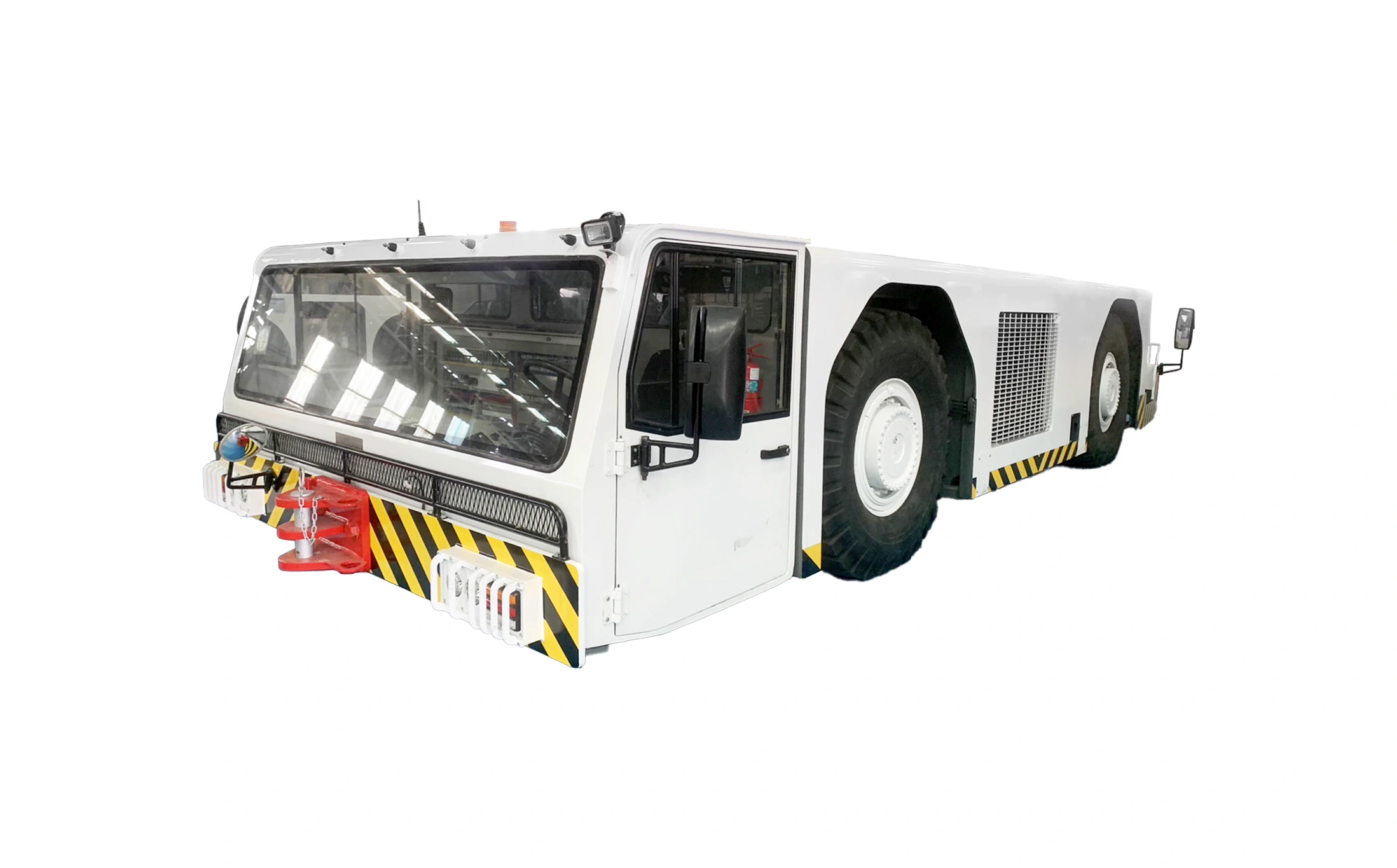

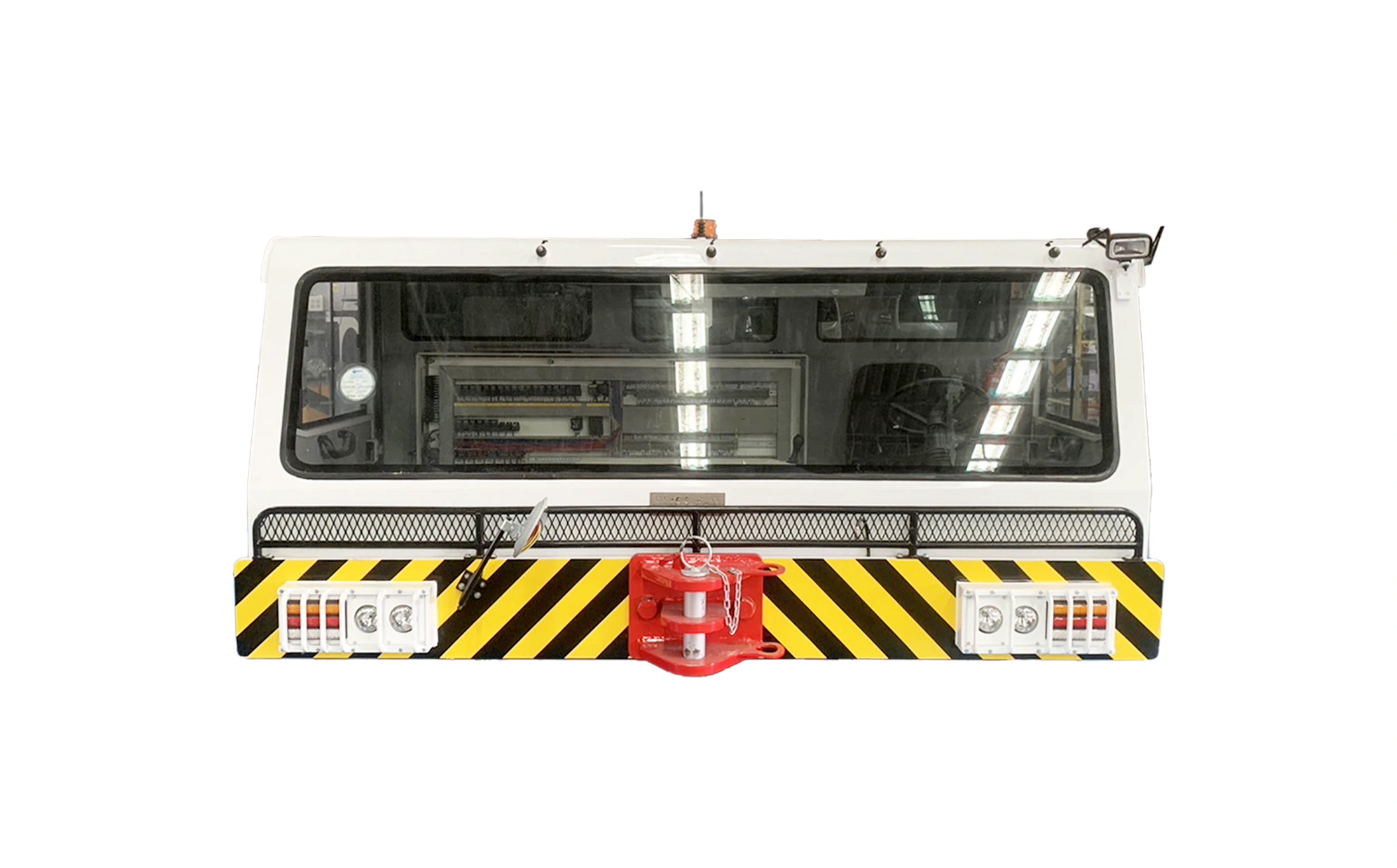

The Avro Tow Tractor PT1500 is built for heavy pushback and long-distance towing operations. It supports aircraft up to wide-body class, where control, traction, and visibility matter on every move.

Features & Benefits

Lifting cab for clear 360-degree operator visibility with backup camera
Extended tow hitch to improve sightline to the nose gear
Access panels on top and sides for faster maintenance and repairs
Deutz TCD 2015 V6 engine rated at 330 kW
Kessler LT 91 series axles
All-time 4-wheel drive
2WS, 4WS, and CRAB steering with automatic realignment
Tight turning radius for congested ramps
Hydraulic cooling system for sustained duty cycles
LED lighting for night and low-visibility operations
Air conditioning and heating
Winterized kit option with auxiliary Webasto heater
Reliable electrical system with simplified diagnostics
3-year or 3,000-hour standard warranty
Stock and support coverage across the United States and Canada

Specifications

Performance
Model	PT1500
DBP	104,536lbf (465kN)
Max Speed Forward	19mph (30km/h)

Engine
Make & Model	Deutz TCD 12.0 – 300 KW
Emission	Tier 4f
Cooling	Liquid

Transmission
Make & Model	ZF powershift 6F/3R

Weight
Basic Weight	54 ton
Ballasted Weight	+16, up to 70

Axle
Make and Model	Kessler LT 91 series
Capacity – F/R	35/35
Mount Type – F/R	Fix / Pivot

Brakes
Service	Internal Wet Hydraulic Disc
Parking	Fail safe Spring Actuated Hydraulically Released

Steering
Type	Orbitral Hydraulic steering
Operation Modes	4WS / 2WS/ Crab
Minimum Turning Radius

Rims
Front and Rear	11.25 – 25

Main Dimensions
Height with Cabin	78″ (1,984mm)
Overhang Front / Rear	9″/90″ (2,370mm/2,300mm)
Overall Length	361″ (9,170mm)
Overall Width	122″ (3,100mm)
Ground Clearance	12″ (297mm)
Track	102″ (2,586mm)
