PT600 – Tow Tractor

PT600

Description

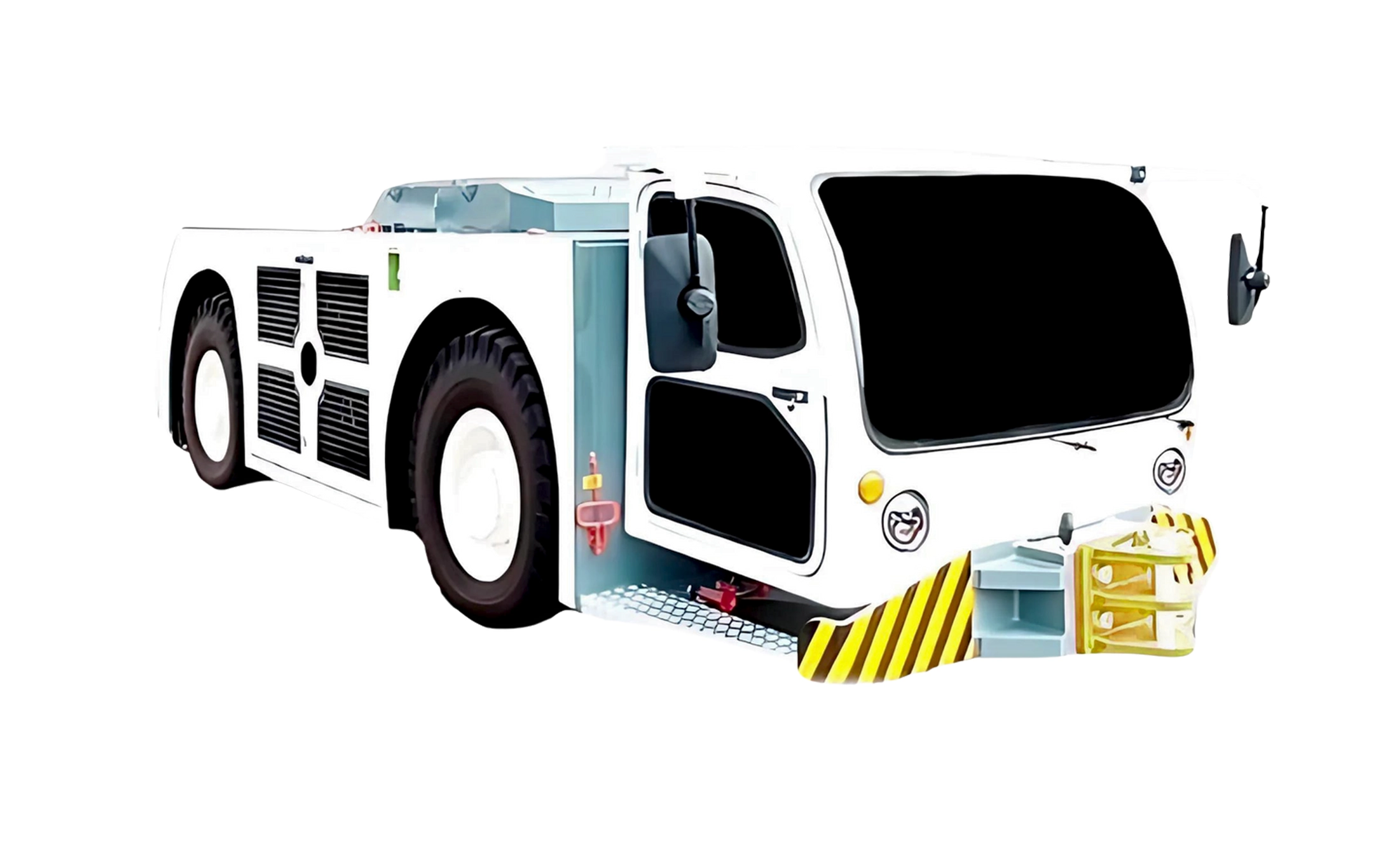

The Avro Tow Tractor PT600 is designed for both pushback and extended towing of aircraft up to 265 tonnes. Ideally suited for pushback & towing of all A333 & A350 & B787 family aircrafts.

Features & Benefits

Lifting cab allows for 360-degree operator view (backup camera)
LED lighting
Extended tow hitch for better visibility
Deutz engine
Dana axles
4-wheel steering
2WD, 4WD, & CRAB with automatic realignment system
Air conditioning & heating
Winterized kit
Access panels designed for ease of accessibility for maintenance and repairs
Hydraulic cooling systems
3 years or 3000 hours standard warranty
Customized business relationship
AAA maintenance program
Stock locations in the United States and Canada

Specifications

Performance
Model	PT600
DBP	47,200lbf (210kN)
Max Speed Forward	17mph (27km/h)

Engine
Make & Model	Deutz TCD 4.1 L4 154hp (115kW)
Emission	Tier 4F

Transmission
Make & Model	ZF powershift 6F/3R

Weight
Basic Weight	52,000lb (23,587kg)
Max Ballasted Weight	66,000lb (29,937kg)

Axle
Type	Axle (planetary)
Capacity – F/R	16.5/16.5
Mount Type – F/R	Fix / Pivot

Brakes
Service	Internal wet hydraulic disc
Parking	Fail safe spring actuated hydraulically released

Drive
Powertrain	Fulltime 4WD
Type	Orbit hydraulic steering
Operation Modes	4WS / 2WS/ Crab
Minimum Turning Radius	112″ (2839mm)

Main Dimensions
Height with Cabin	80″ (2032mm)
Overhang Front / Rear	95″/33″ (2413mm/844mm)
Overall Length	255″ (6477mm)
Overall Width	98″ (2489mm)
Ground Clearance	11″ (279mm)
Track	76″ (1930mm)
