Description

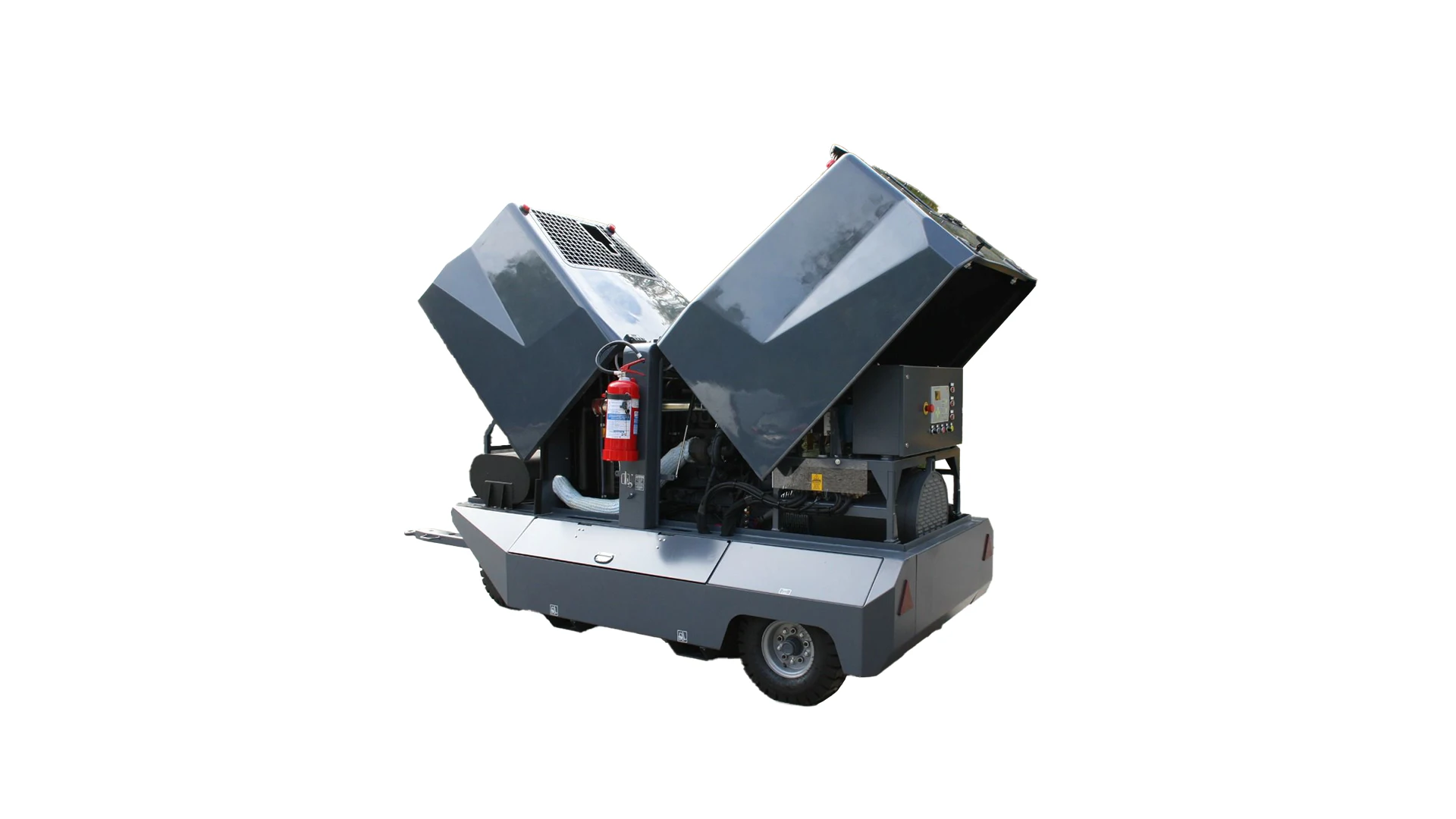

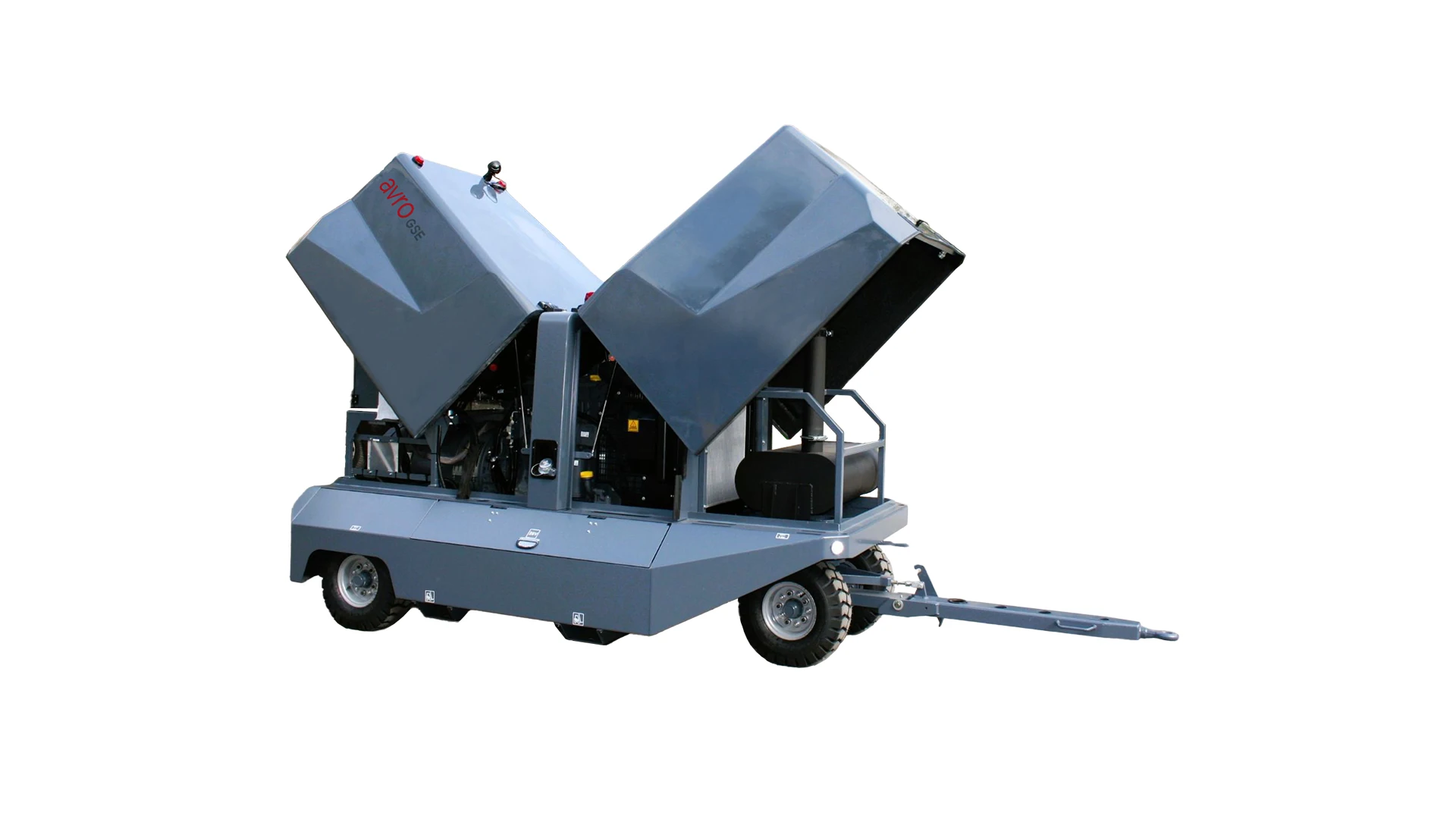

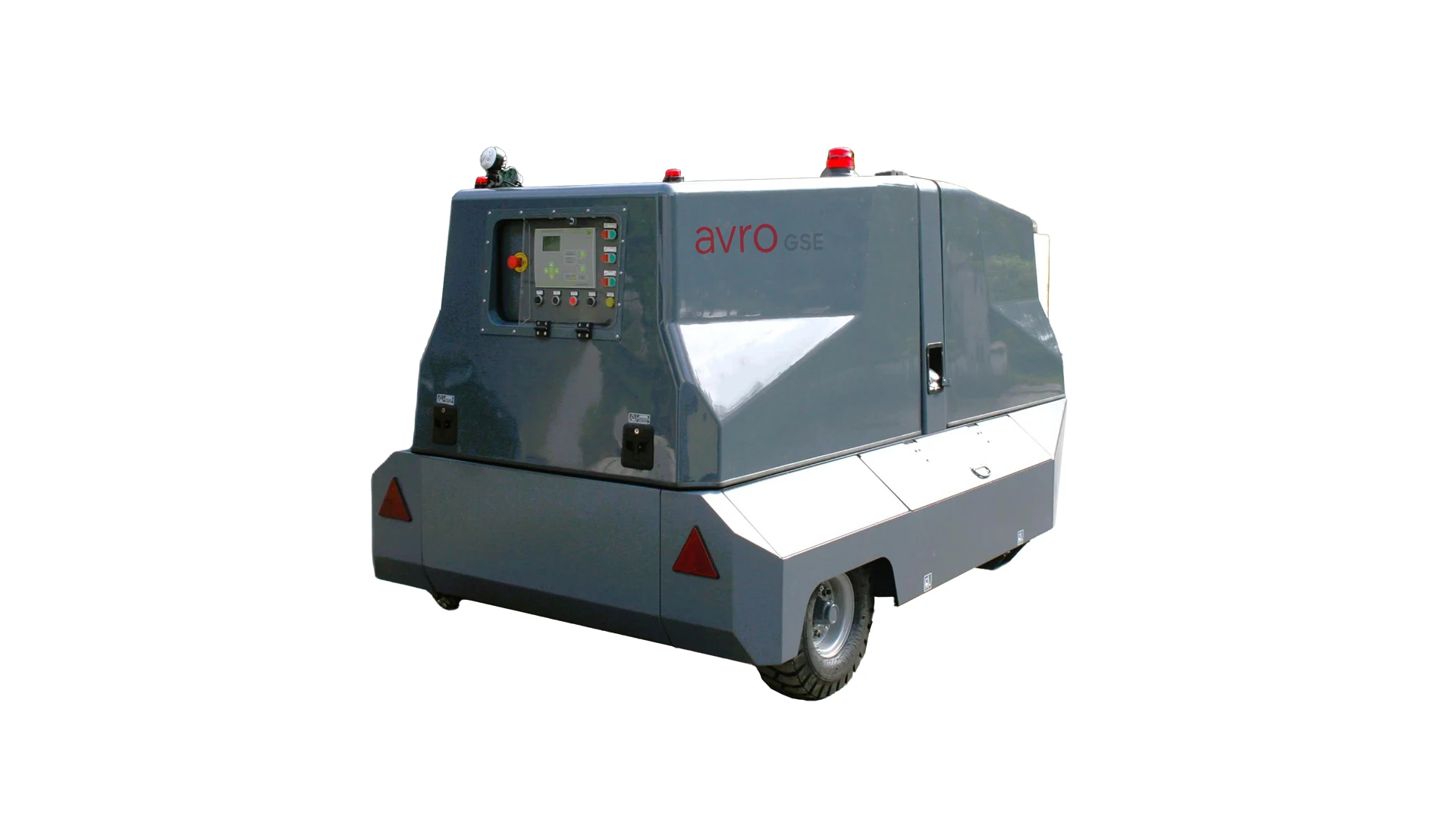

The Avro 140 kVA Diesel Ground Power Unit provides unwavering, protected power for your aircraft. Benefit from exceptional reliability with its Deutz engine and EU-made alternator in a durable steel chassis. Its user-friendly design ensures easy maneuvering and maintenance. Experience significant fuel savings from optimized 1500 RPM operation. This versatile unit powers diverse aircraft (400Hz/optional 28V DC), consistently meeting rigorous aviation standards.
Features & Benefits
- Delivers 2000A peak output for quick engine starts
- Provides 800A continuous power for stable operation
- Maintains precise voltage within ±1% range
- Meets MIL-STD-704F standards for aircraft safety
- Operates reliably in temperatures from -20°C to +45°C.
- Minimizes noise with a soundproof canopy at 72 dB
- Allows easy ramp transport with a trailer design
- Offers clear monitoring with a control panel and alarms
- Ensures safety with protection against oil, temperature, and voltage issues
- Adapts to needs with optional electric start and plug protection
| Technical Data | ||
|---|---|---|
| GPU Power | 140 kVA | |
| Engine type | Deutz | |
| Cylinders | Deutz 6 cylinders | |
| Emission Standard | Tier 2 | 4F | |
| Engine kW/hp | 200 | 179 | |
| Weight (kgs) | 3,300 | 3,350 | |
| Dimensions of output cables |
Length 10 meters, |
|
| Outputs optional available | 28V DC and 56V | |
| Battery System | 24V (2 x 12 V 125 Ah) | |
| Fuel Tank | 315 lt / 100 Gal (8 to 24 hours operations) | |
| Electrical | ||
|---|---|---|
| Permanent power at cos = 0.8 KVA | 140 | |
|
Overload 25% – 5 min |
Yes |
|
| Overload 10% – 10 min | Yes | |
| Outputs 400Hz 115/200V | 2 | |
| Transient Performance MIL STD704E/EN2282 | Yes | |
