Description

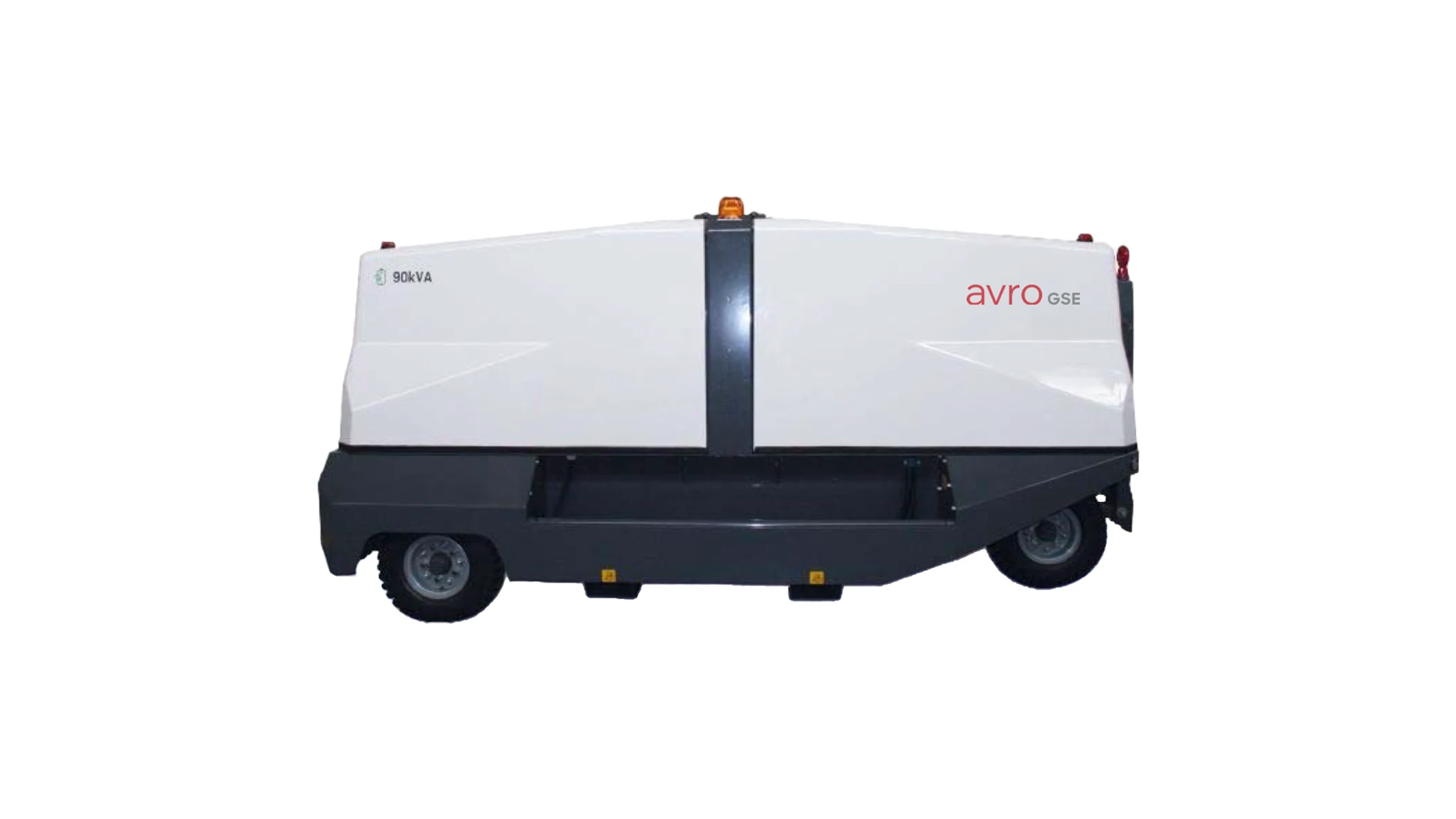

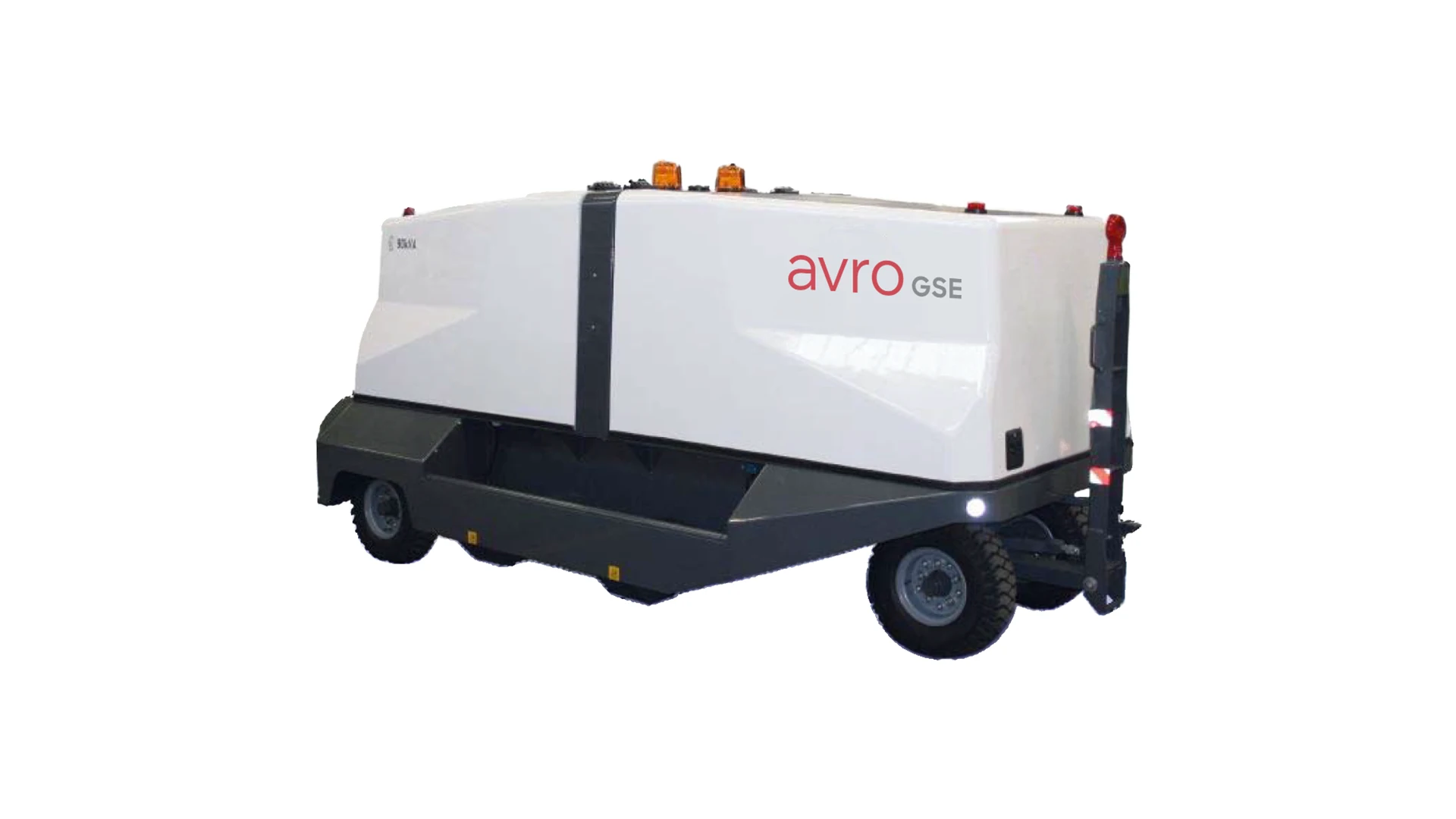

The Avro 90 kVA Full Electric GPU delivers precise, transient-protected power for aircraft. It integrates an EU-sourced alternator within a robust, painted steel chassis. An intuitive control panel and tool-free access ensure streamlined operation and maintenance. It provides versatile 400Hz (and optional 28V DC) output, meeting all critical global aviation standards.
Features & Benefits
- Handles permanent/peak current, voltage and frequency transients.
- EU-made alternator, durable steel chassis with long-lasting paint.
- Intuitive control panel, compact size for easy handling, tool-free access for maintenance.
- Supports multiple aircraft types with both 400Hz and 28V DC output options.
- Meets EN, ISO, SAE, CE, and IATA standards.
| Technical Data | ||
|---|---|---|
| GPU Power | 90KVA | |
| Input voltage for battery recharge | 380/415Vac 50Hz | |
| Lithium Battery Technology | LifePO4 | |
| Ampere | 210 Ah | |
| Battery Pack Capacity (KWh) | 75 | 120 | 150 | |
| Output(s) available |
N. 1 x 115/200Vac 400Hz |
|
|
Output(s) cable length |
Standard: 10 m |
|
|
Input Cable Length |
10 m complete |
|
|
Configuration |
Towing trailer |
|
|
Max Speed |
30Km/h |
|
| Dimension | ||
|---|---|---|
| Length (L) – with towbar up | 3.370 mm | |
|
Width – (W) |
1.680 mm |
|
| Height (H) | 1.600 mm | |
