Description

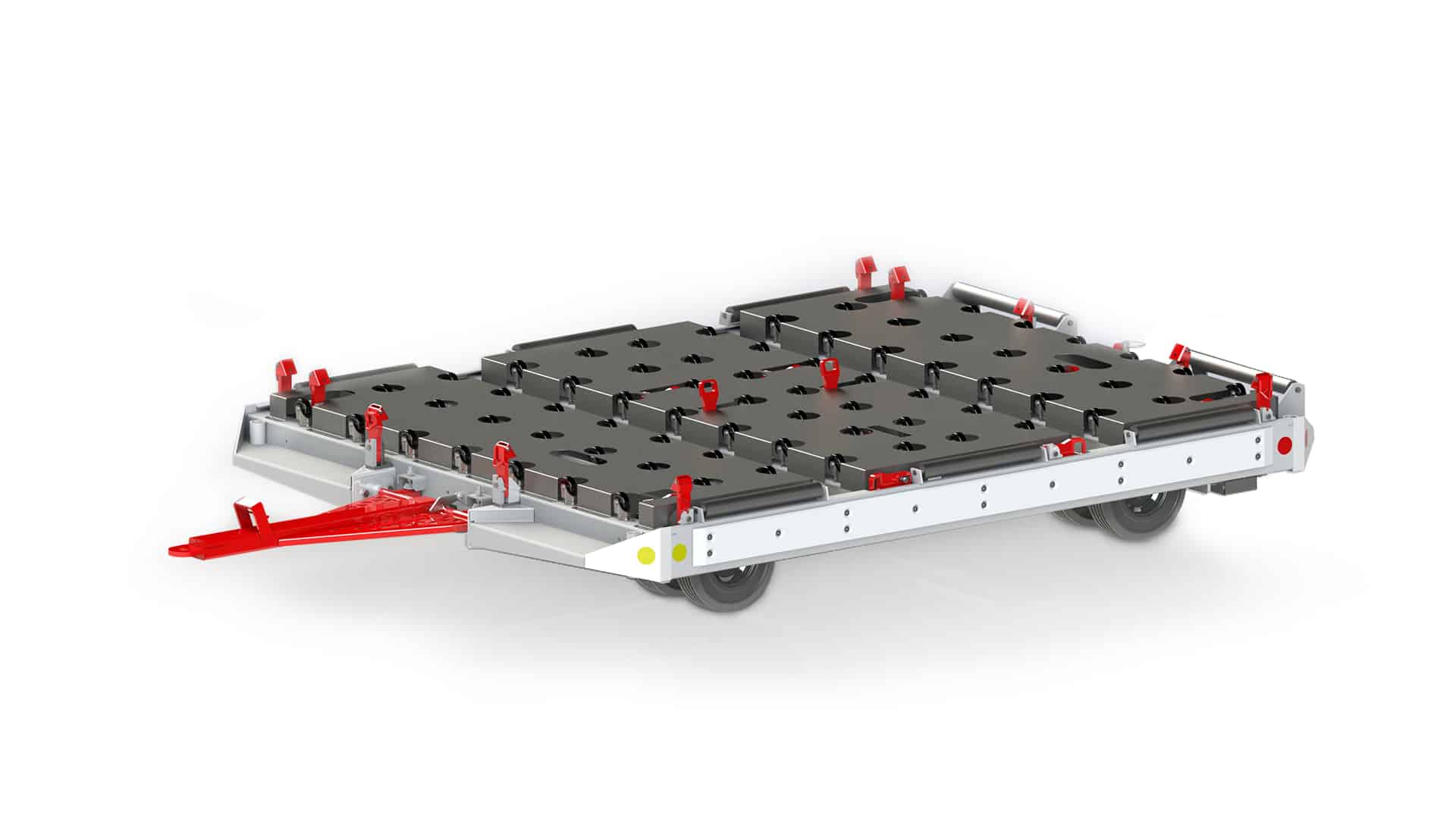

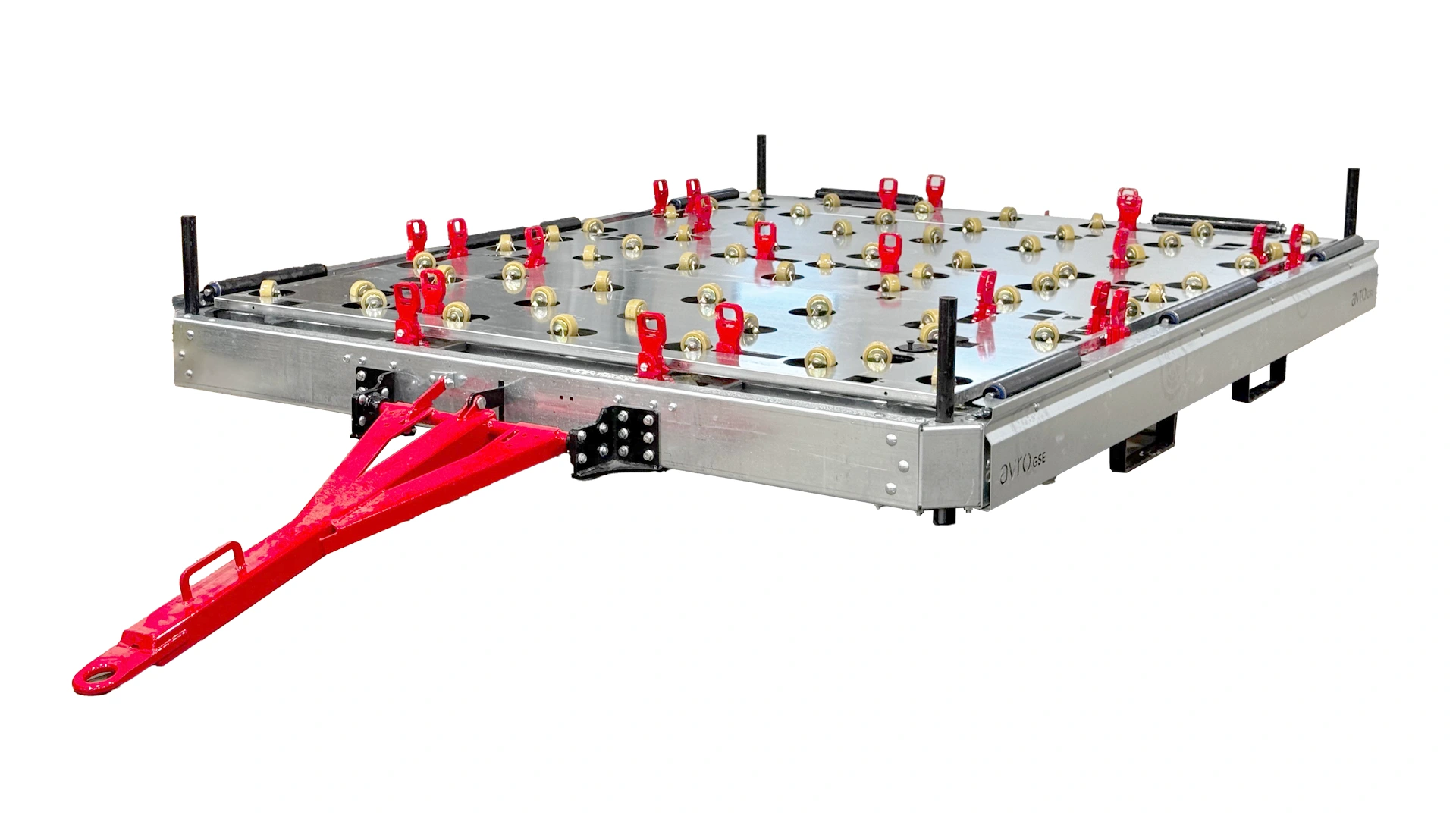

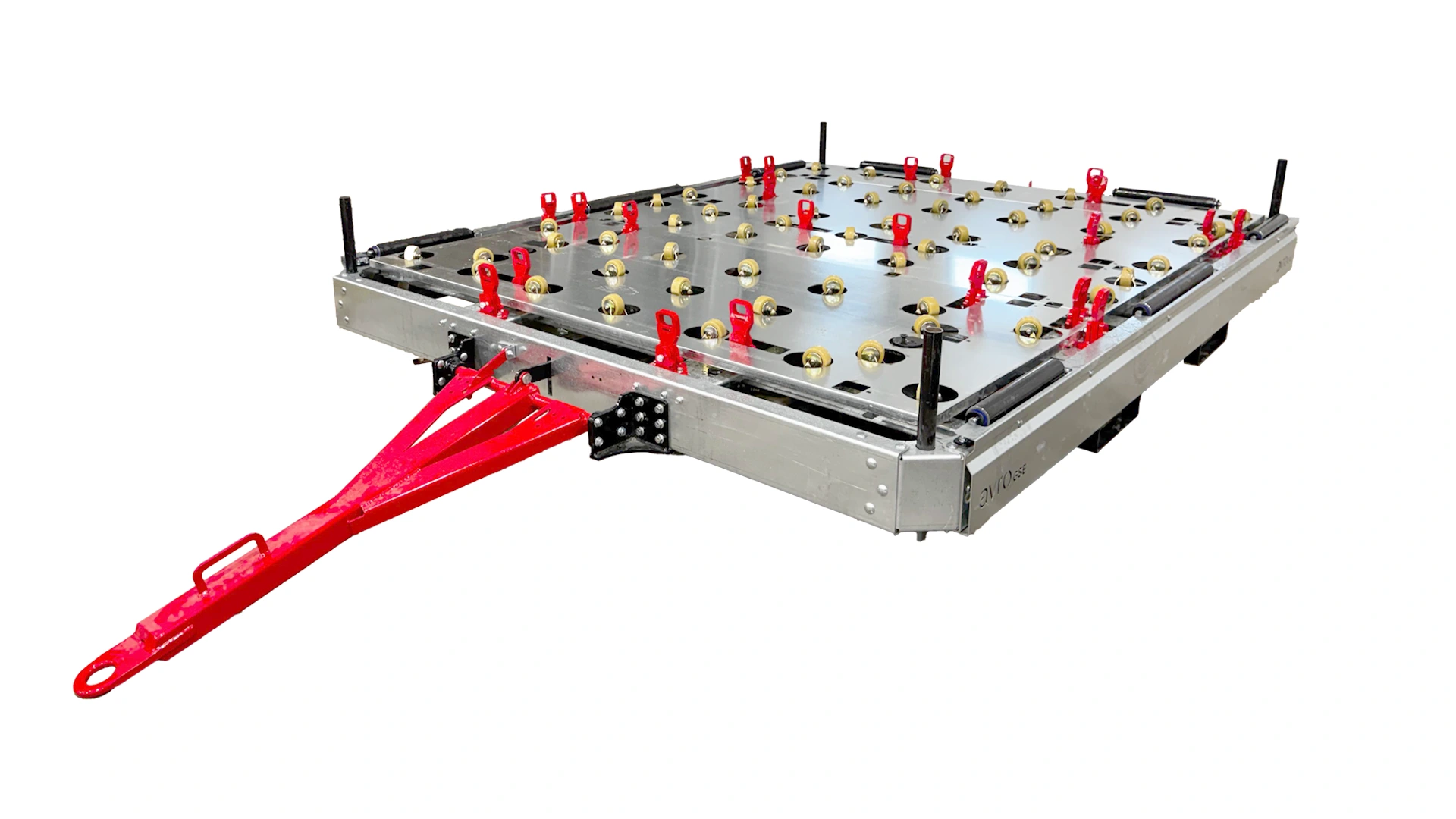

The Avro Pallet Dolly PLD7-EC with enclosed caster features spring-loaded tip-up pallet stops, towbar actuated brakes and front dual wheel swivel casters with dual rear wheels.
- E_Z bolt on stops of lower deck containers
- Spring loaded tip-up pallet stops
- 50 casters with 6 + 2-2 ½” diameter rollers
- 400 x 8 x 3.75 solid rubber tires mounted on demountable rims
- Tow bar actuated brakes
- Front dual wheel swivel casters with dual rear wheels
- E-Type Rear hitch, spring loaded
- Stackable for shipping and storage
- Additional features available
- 12 Month warranty
| Capacity | LD2x2, LD3x2, LD4, LD7, LD8, LD11, 88″ x 125″ and 96″ x 125″ (2,235 x 3,175mm and 2,438 x 3,175mm) | |
|---|---|---|
| Length (With Tow Bar) | 184″ (4,660 mm) | |
| Length (With Raised Tow Bar) | 138″ (3,510 mm) | |
| Width | 102″ (2,591 mm) | |
| Height | 21″ (533 mm) | |
| Max Driving Speed | 30 km/h | |
| Total Weight | 3,100 lb (1,406 kg) | |
| Max Permitted Load | 5,291 lb (2,400 kg) | |
| Pallet Capacity | 88″ x 125″ and 96″ x 125″ (2,235 x 3,175 mm and 2,438 x 3,175 mm) | |
