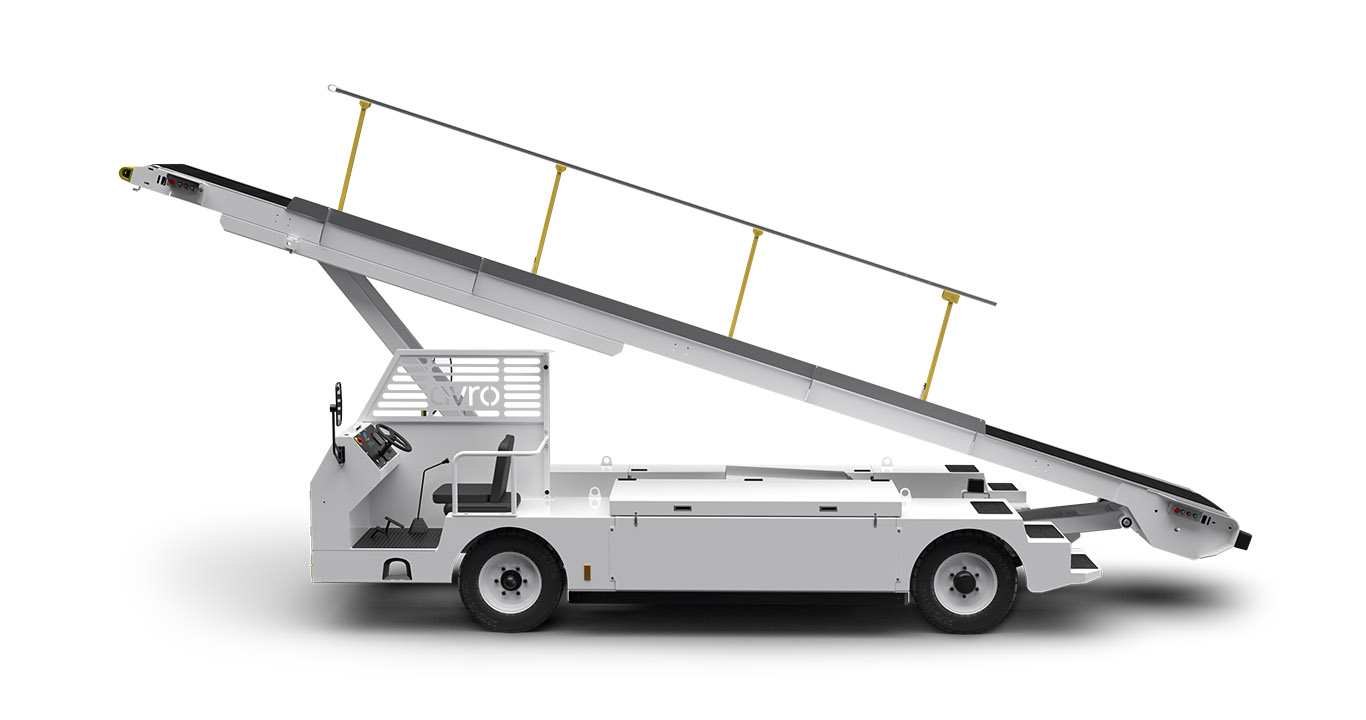

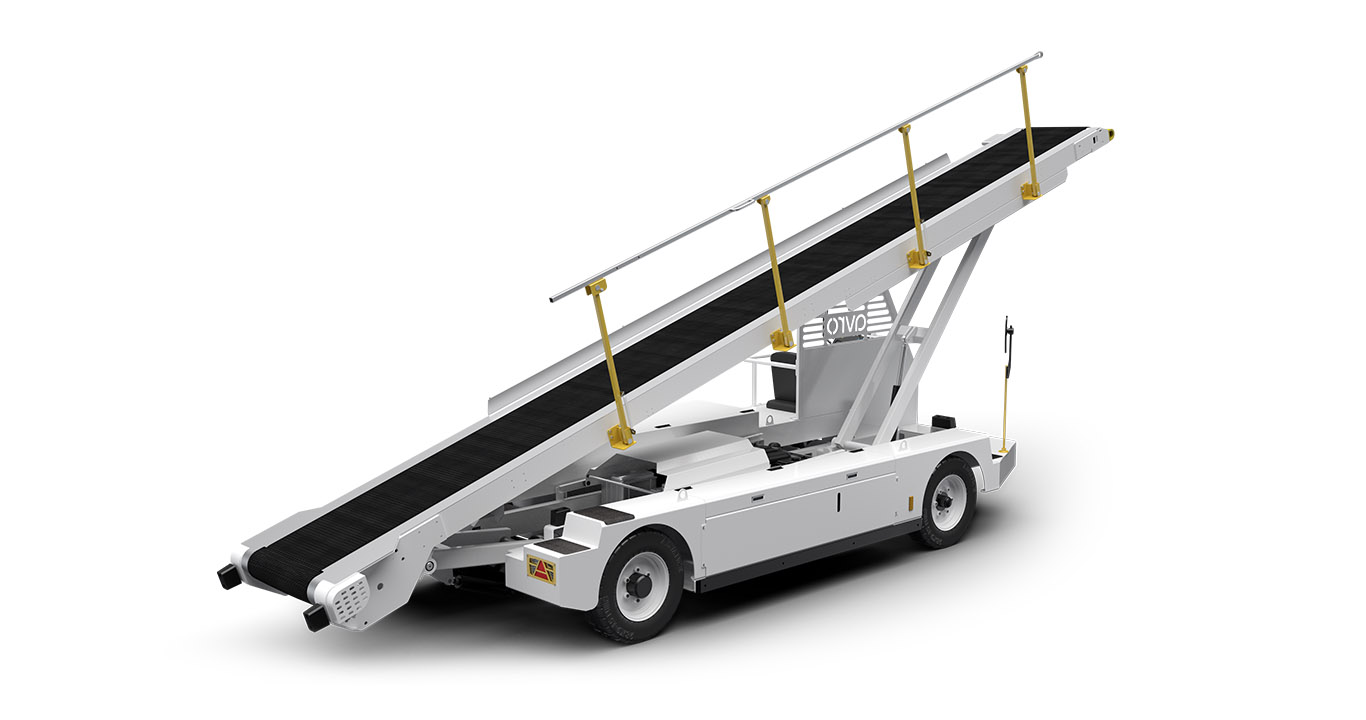

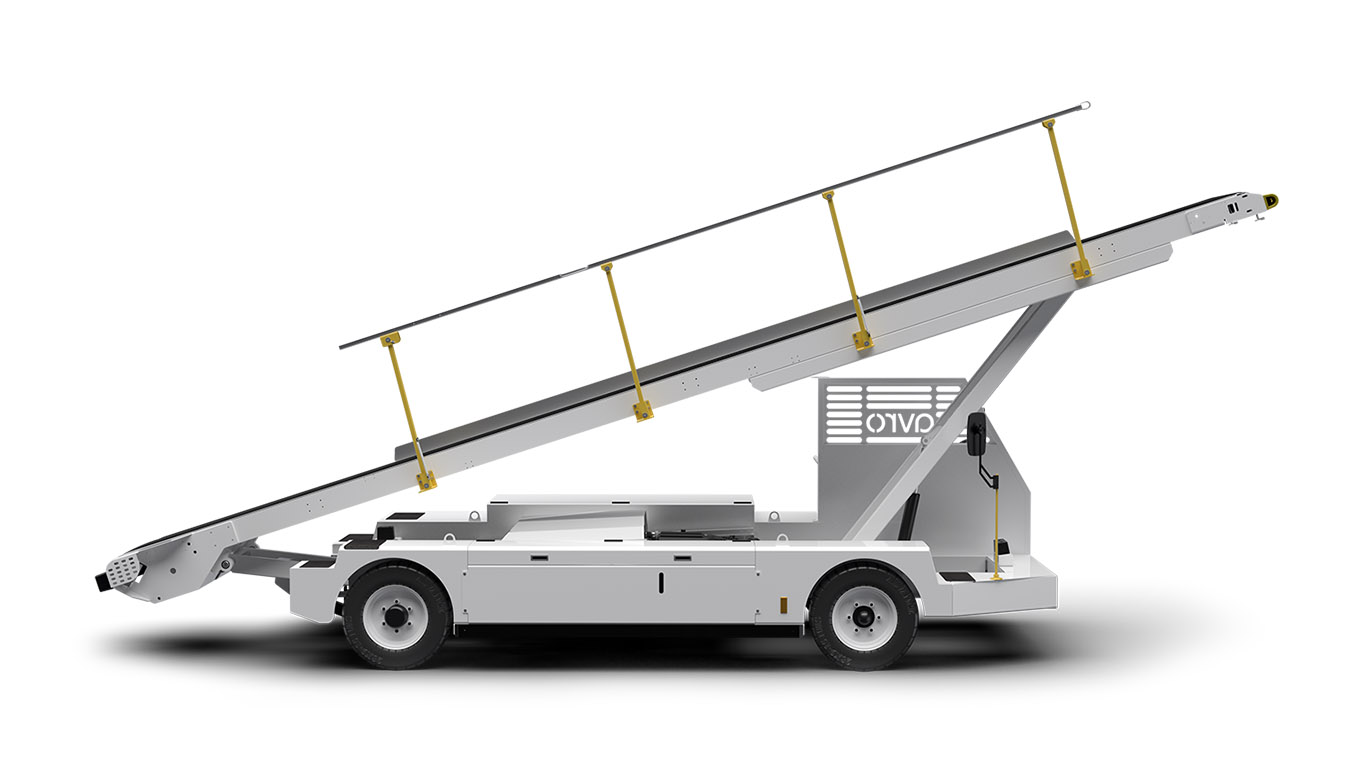

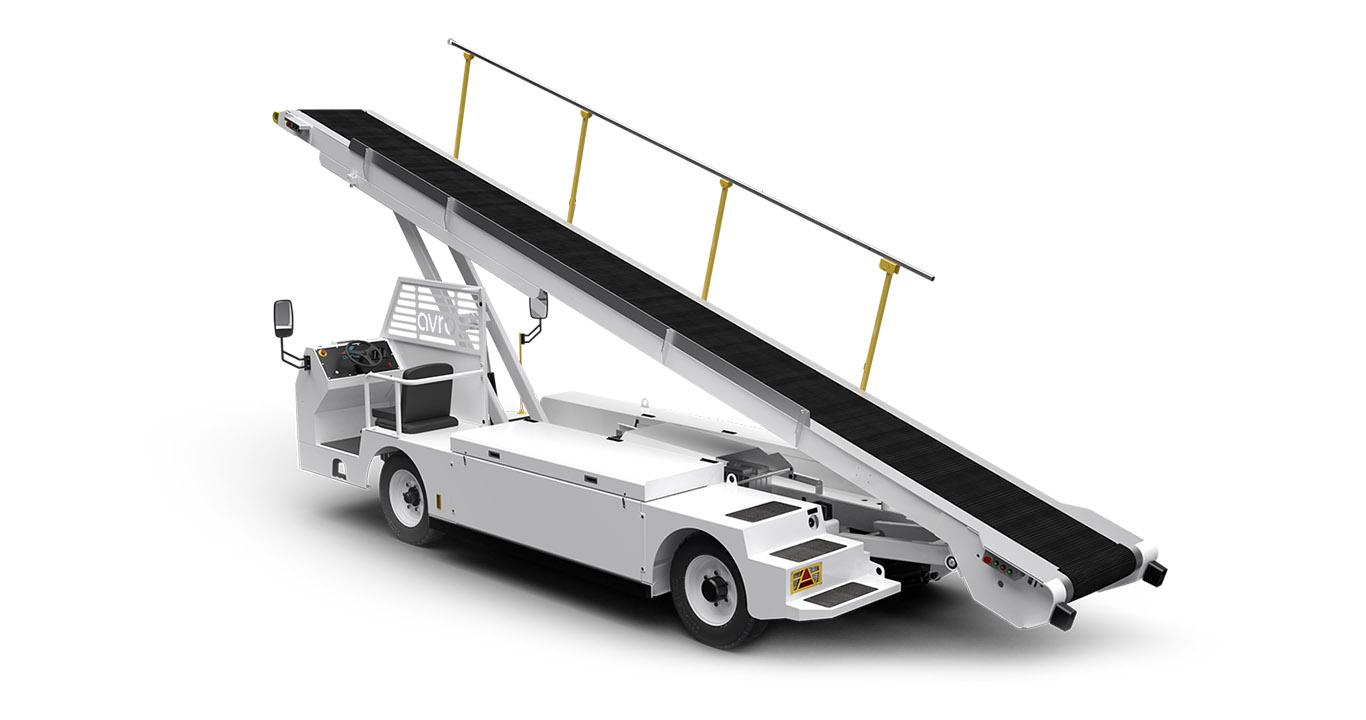

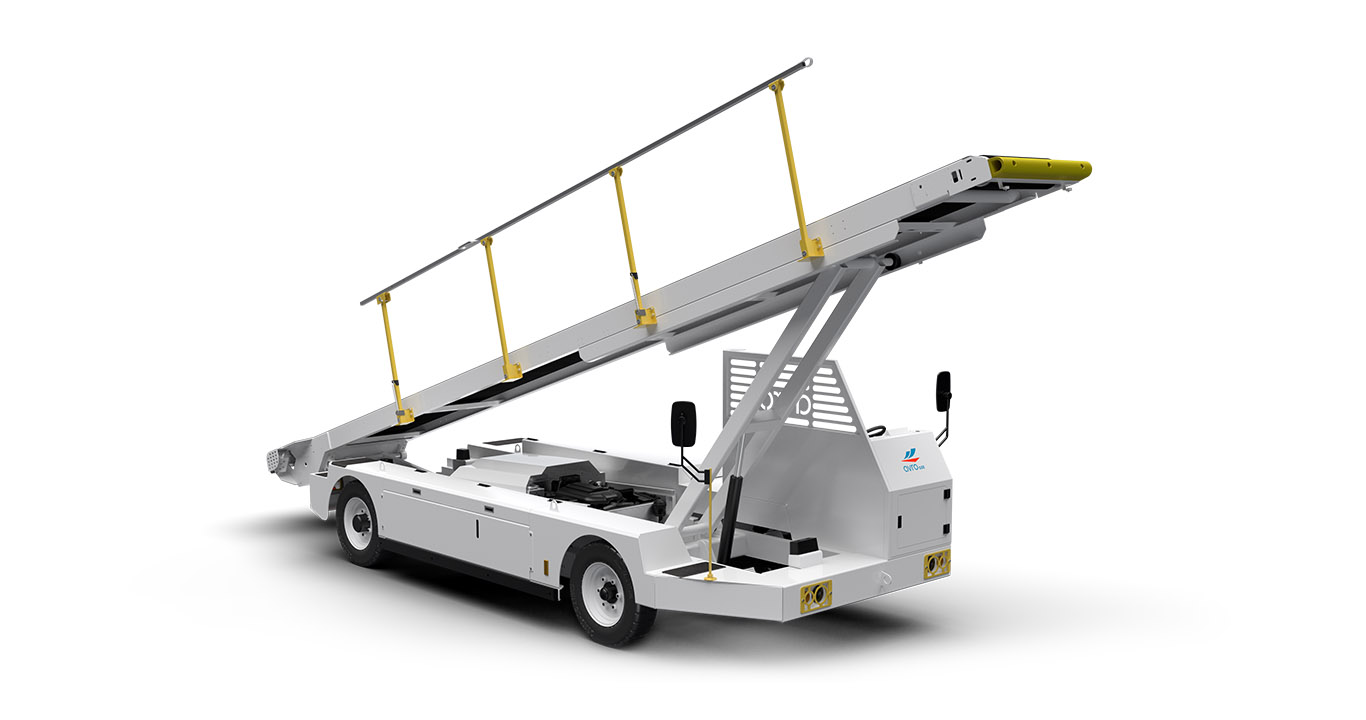

Belt Loader – Lithium Electric
BL30LI Lithium Electric Belt Loader Specification Sheet
Avro’s next generation electric belt loaders are leading edge performance, design, functionality. Designed to exceed expectations and deliver extraordinary ROI. Each loader features standard functionality such as hydraulic steering, Curtis controller with self-diagnosis functionality, vacuum assist hydraulic brakes, complete telematics for remote diagnostics and monitoring, along with our managed maintenance program.
Product Details
- Hydraulic steering system
- CAS (Collision Avoidance System) comes as standard
- Digital controller with self-diagnosis function
- Vacuum assist hydraulic breaks
- Front and rear belt height adjustment with variable belt speed
- Optional onboard telemetry system
Model: BL30LI
Power Type: Lithium Battery 80V/450AH
Service Weight: 3800kg
WORKING RANGE
Transfer Length: 31” (7650mm)
Transfer Width: 34” (870mm)
Conveyor Belt Transmission Speed: 160-500mm/s
Conveyor Belt Max Tilt Angle: 29°
Turning Radius: 4100/1260mm
Transfer Minimum Height (F/R): 1180/880mm
DIMENSIONS
Size (L x W x H): 315” (8000mm) x 84” (2120mm) x 59” (1500mm)
Wheelbase: 118” (3000mm)
Ground Clearance: 6” (150mm)
Turning Radius: 7600mm
Max Approach Angle: 16°
Min Departure Angle: 17°
Tire: 225/70 R15
PERFORMANCE
Travel Speed (No Load): 28km/hr
Front Axle Load: 2400kg
Rear Axle Load: 3000kg
Max. Gradeability: 10%
HYDRAULIC SYSTEM
Operating Pressure: 8 – 12 Mpa
Max Operating Pressure: 14 Mpa
Hydraulic Transmission Motor Displacement: 0.4L
Hydraulic Oil Tank Capacity: 70L
