Description

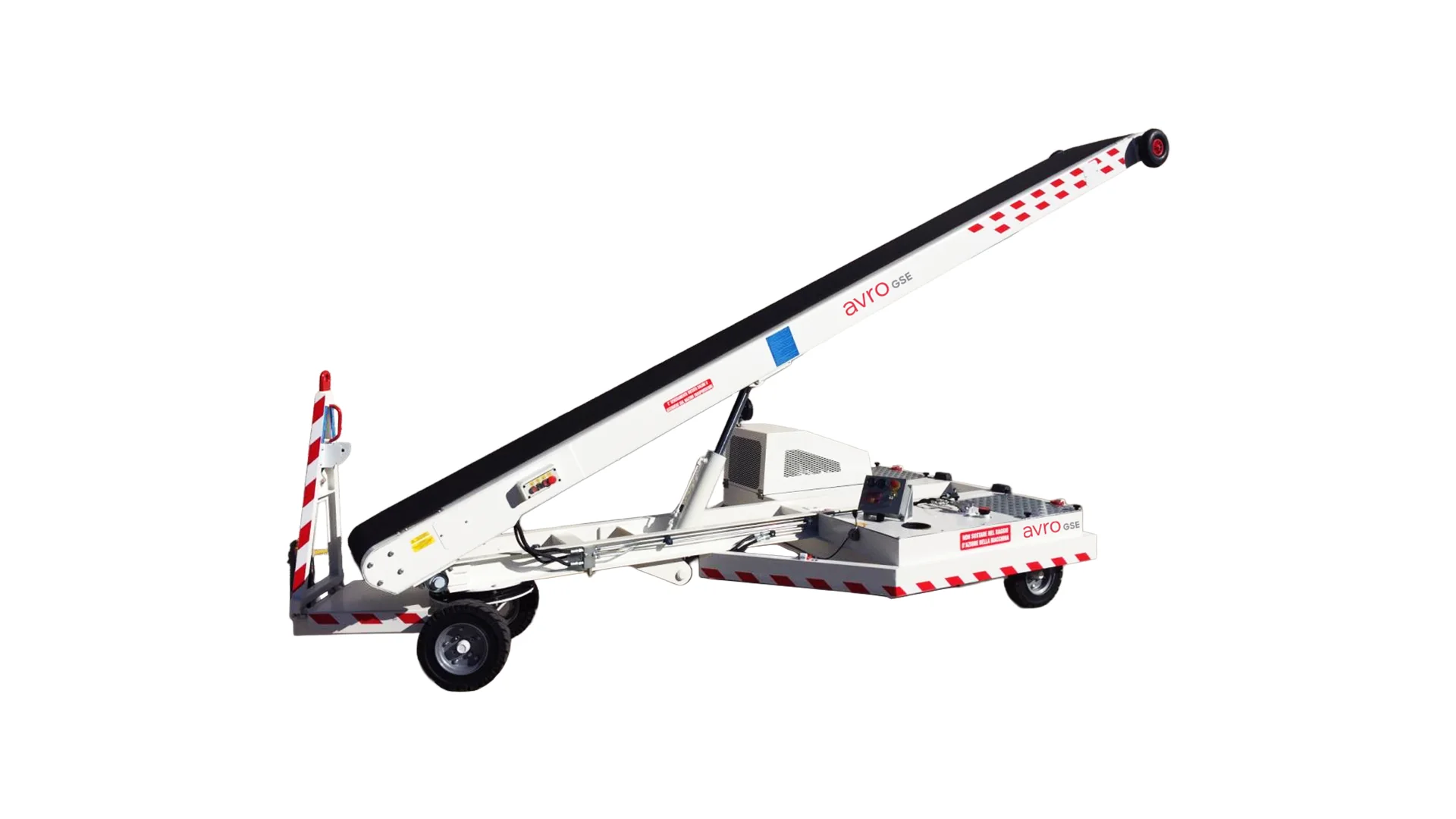

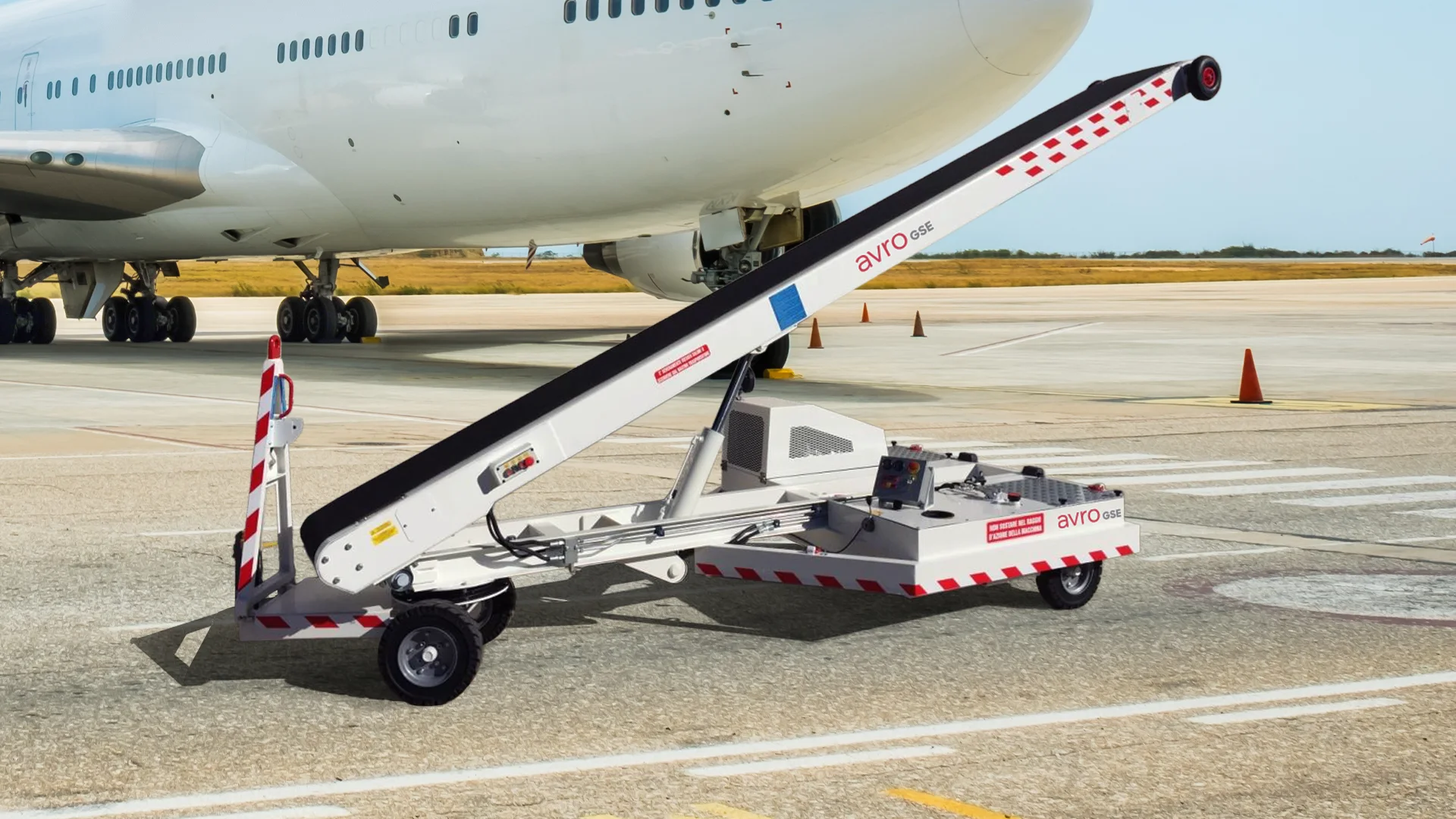

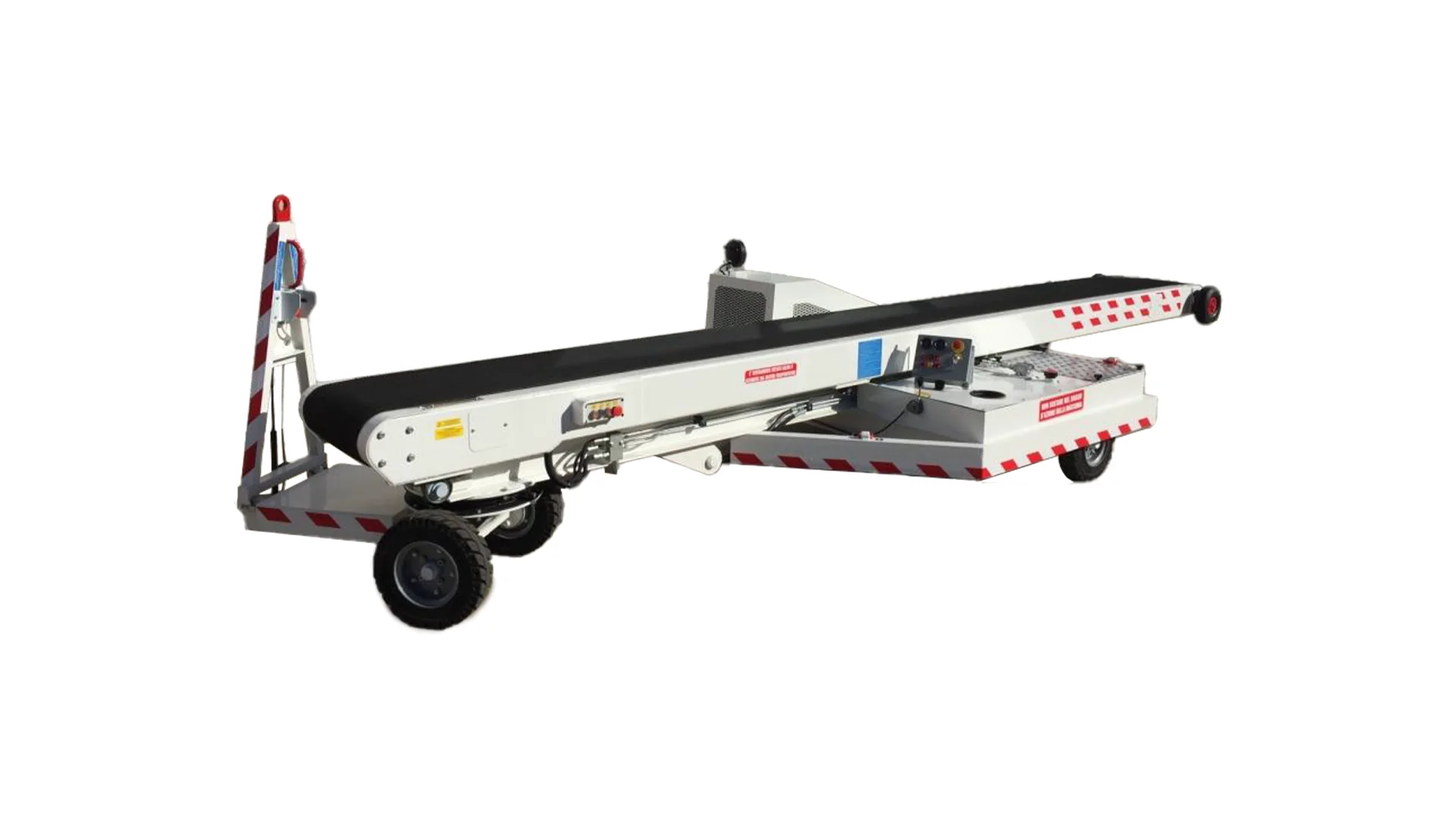

The Avro Towable Belt Loaders are pioneering products in North America, setting a new standard for flexibility and performance on the ramp. Available in gas, diesel, and electric models, it gives operators the freedom to choose the right fit for their operation. The 48V electric version delivers quiet, eco-friendly performance, while the gas and diesel options provide dependable power for continuous use. With a six-meter belt length, adjustable belt speed up to 48 m/min, and a maximum loading height of three meters, the TB20 ensures faster aircraft turnaround and smoother ground operations.
Benefits and Features
- 48V electric system for quiet, eco-friendly operation
- Towbar-controlled hydrostatic drive for precise maneuvering
- Adjustable belt speed up to 48 m/min for faster turnaround
- Six-meter belt length to service a range of aircraft
- Three-meter maximum height for efficient loading and unloading
- Durable wheel options to handle various ramp surfaces
| TB20G | ||
|---|---|---|
| Alimentation | Gas | |
| Engine | Honda or similar | |
| Nominal Power | 20 kW | |
| TB20D | ||
|---|---|---|
| Alimentation | Diesel | |
| Engine | Yanmar or similar | |
| Nominal Power | 20 kW | |
| TB20E | ||
|---|---|---|
| Alimentation | Electric | |
| Engine | Best Motors | |
| Nominal Power | 7 kW/48 V | |
| General Specifications (All Models) | ||
|---|---|---|
| Max Height | 118.11 in (3,000 mm) | |
| Belt Width | 23.62 in (600 mm) | |
| Belt Length | 236.22 in (6,000 mm) | |
| Wheel Base | 118″ (3,000mm) | |
| Side Removable Protection | Optional on demand | |
| Belt Speed | Adjustable | |
| Max Bel Speed | 48 m/min | |
| Weight | 3,306.93 in (1,500 kg) | |
| Traslaction | Hydrostatic from the tow bar | |
| Belt Length | 236.22 in (6,000 mm) | |
| Towbar Eye | ø40 DIN 74054 | |
| Parking Brake | Mechanic | |
| Number of Braking Axles | 1 | |
| Battery | 48 Volt – 260 Ah | |
| Wheels Type | Pneumatic Superelastic (optional) |
|
| Wheels | 2 FRONT (4.00-8”) 2 REAR (4.00-8”) |
|
| CE Conformity | DIR. 2006/42/CE (“DIRECTIVE ON MACHINERY”) DIR. 2004/108/CE IATA AHM 925 |
|
