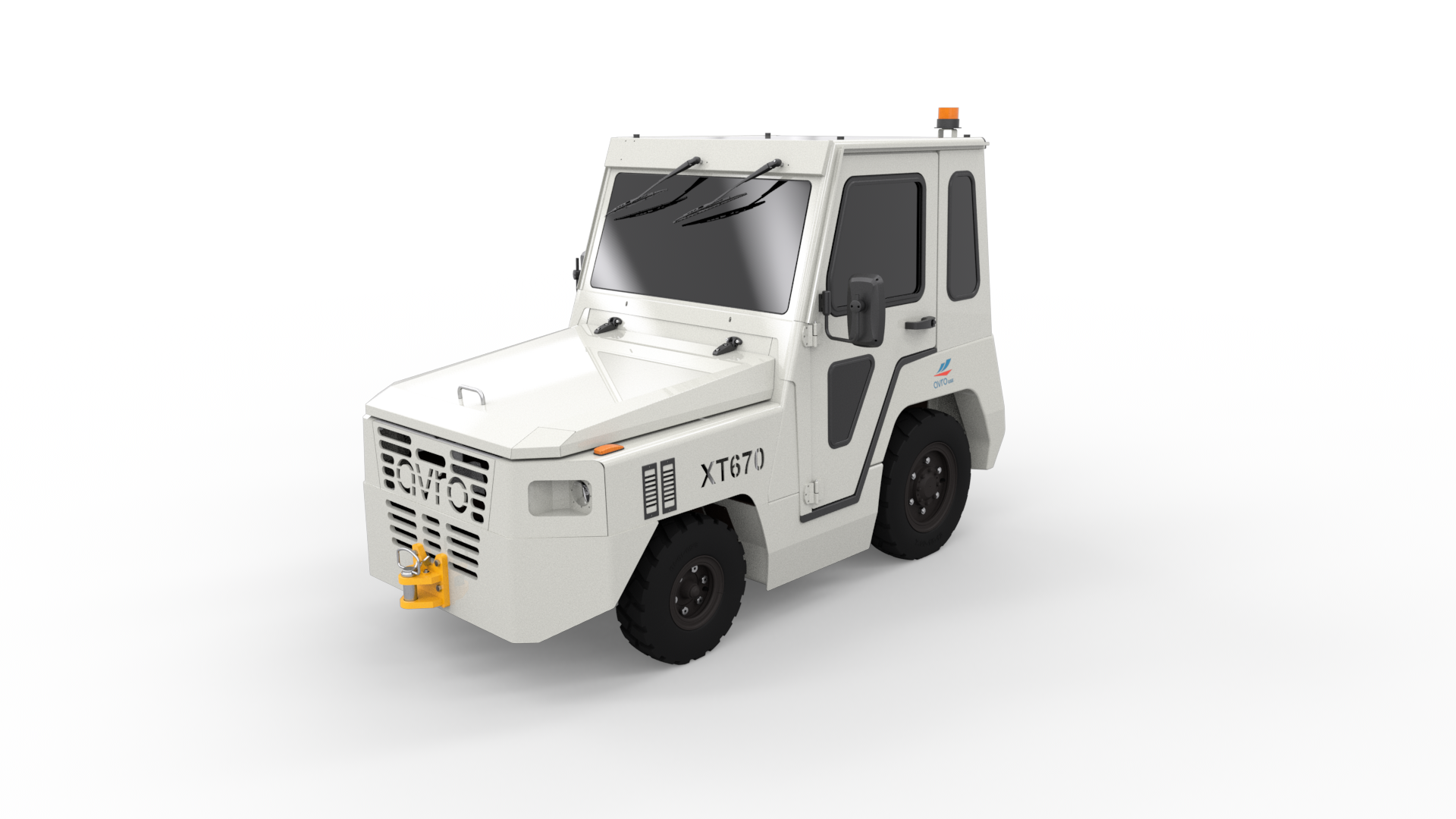

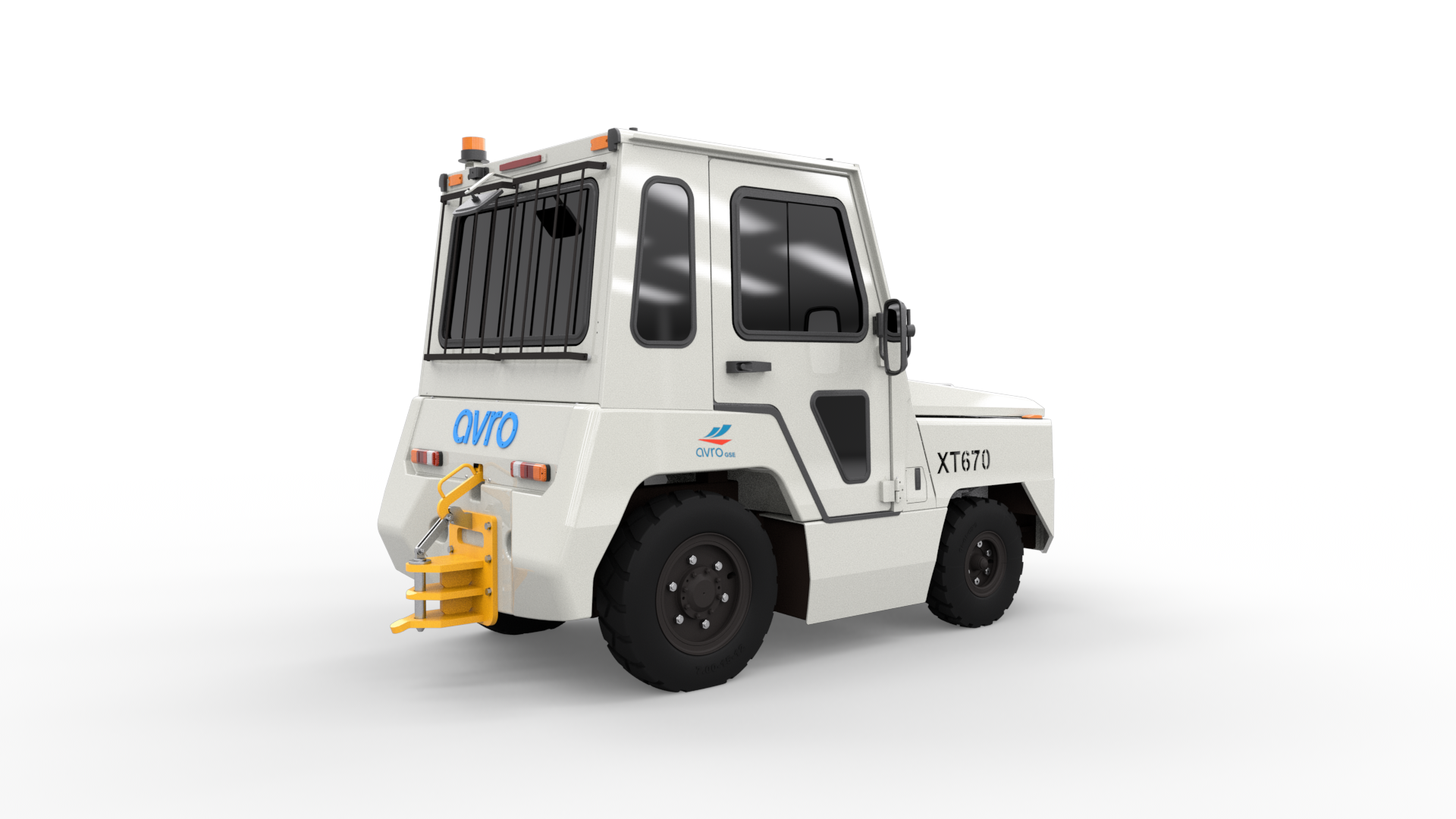

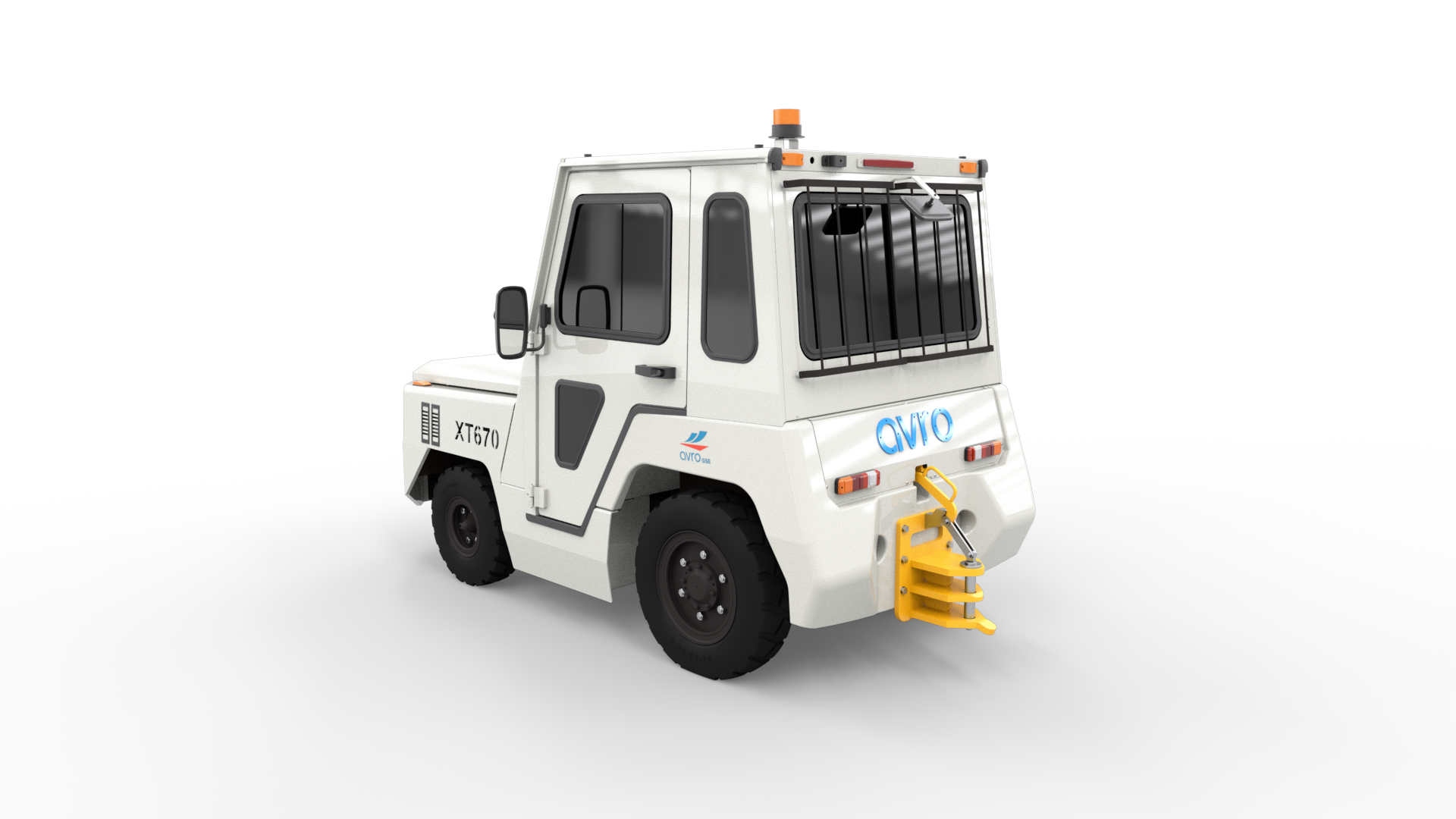

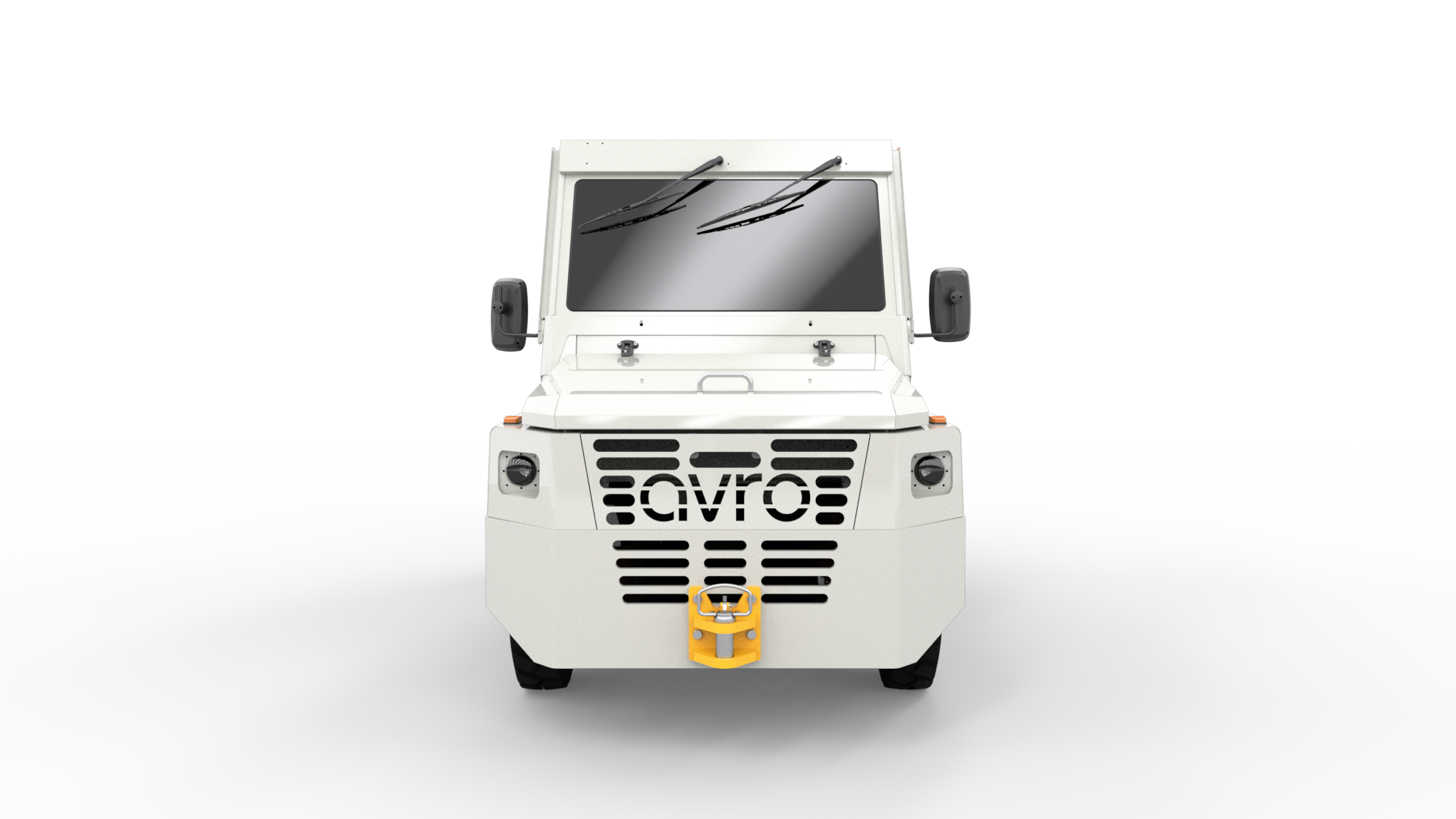

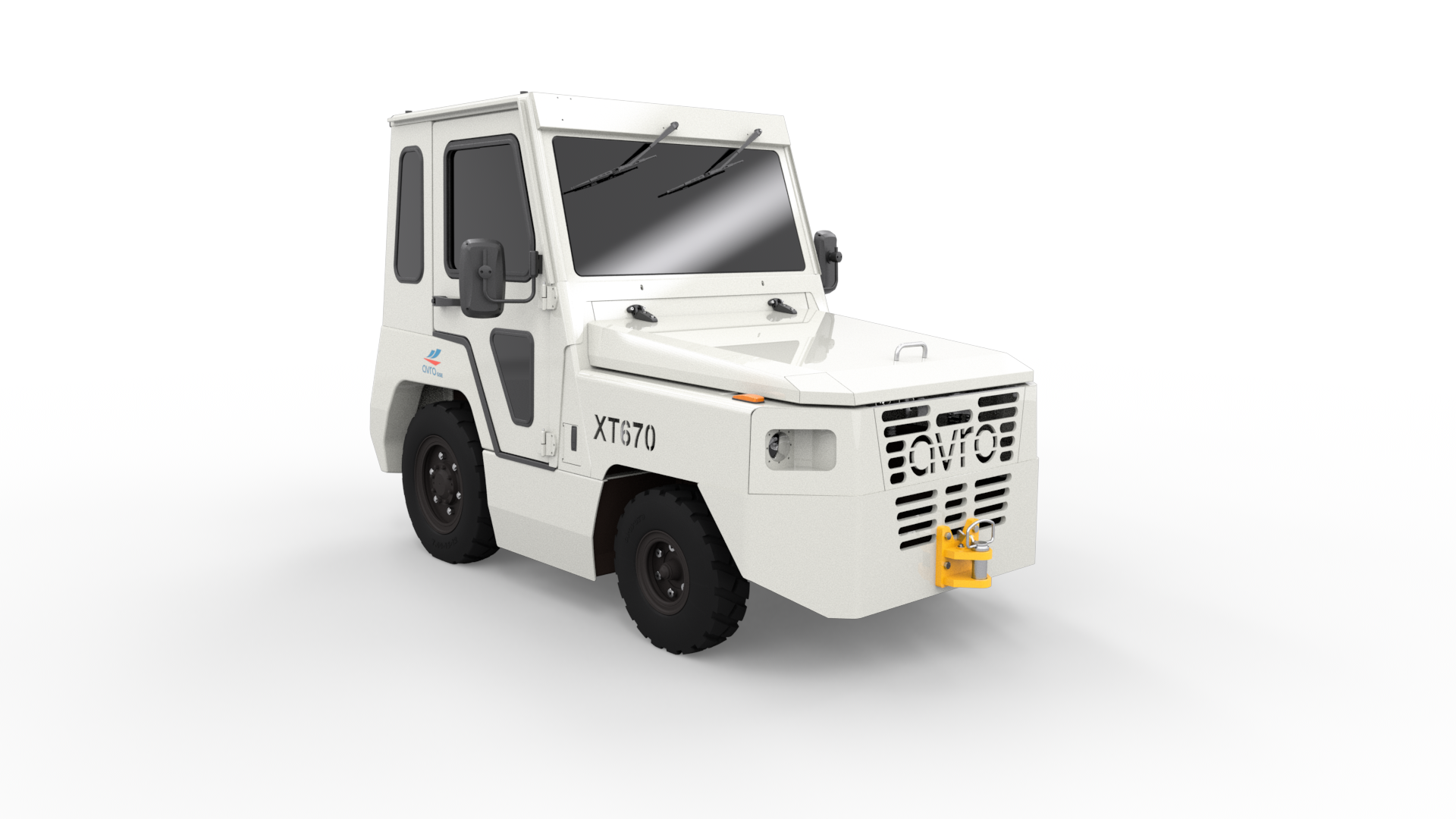

XT Baggage Tractor – Diesel

XT670D

XT670D Specification SheetXT670D Specification Sheet

Powered by diesel, the Avro XT670D truly is a next generation baggage tractor. This model has a DBP of 6,700lb and is able to tow cargo from any position, front or back.

Product Details

  • Hydraulic steering
  • Front and rear towing couplers with cab control
  • Standard cab enclosure with windshield and wiper kit
  • Digital controller with self-diagnosis function
  • Vacuum assist hydraulic breaking system
  • Optional Onboard Telemetry System

Model: XT560D
Power Type: Diesel
SERVICE WEIGHT: 4300kg

DIMENSIONS PARAMETER
Size (L x W x H): 122” (3090mm) x 57” (1450mm) x 78” (2000mm)
Wheelbase: 63” (1600mm)
Towing Couplers Heights: 12” (305mm)
Ground Clearance: 6” (150mm)
Turning Radius: 132” (3350mm)

TIRES
Front, Rear: 6.50-10-10PR, 7.00-12-12PR

PERFORMANCE PARAMETER
Speed (Loaded/Unloaded): L: 13km/h, U: 42km/h
Front Axle Load: 1250kg
Rear Axle Load: 3050kg
Max Drawbar Pull: 6700lb (30kN)

MOTOR
Engine Model: KHOLER KDI2504TCR

TRANSMISSION
Model: ZF3WG94
Shift Configuration: AUTO SHIFTS
Operating Type: AUTOMATIC

CONFIGURATION OPTIONS
Heat: Optional
Cab: Open, Fully Enclosed
