ST Baggage Tractor – Lead Acid Electric

ST470LA

ST470LA Spec SheetST470LA Spec Sheet

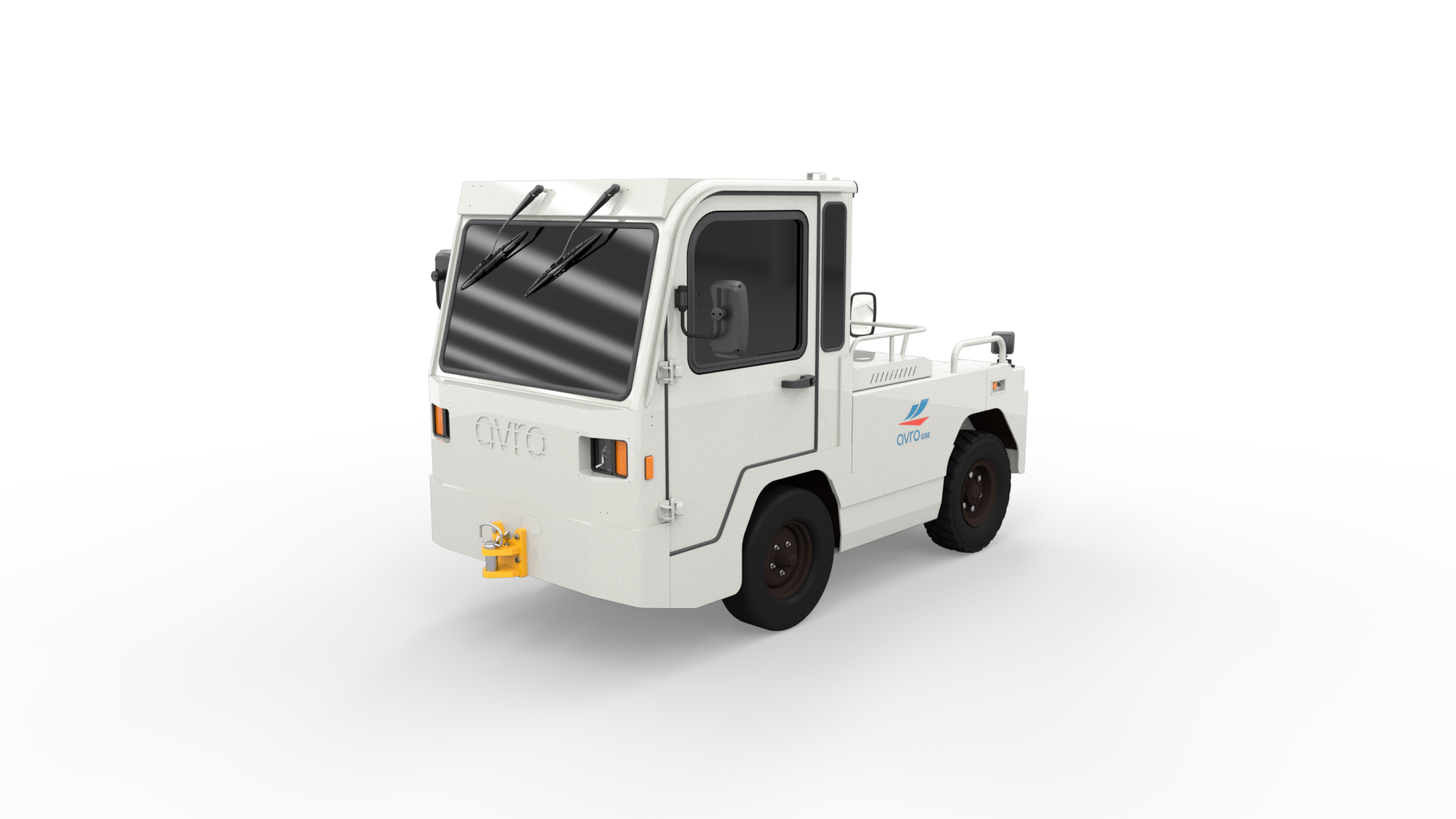

Powered by a lead-acid battery, our customers not only enjoy the low maintenance and cost-savings that come with the Avro ST470LA Baggage Tractor, but the ability to tow from front or back. This model has a DBP of 4,700lbs.

Product Details

  • Hydraulic steering

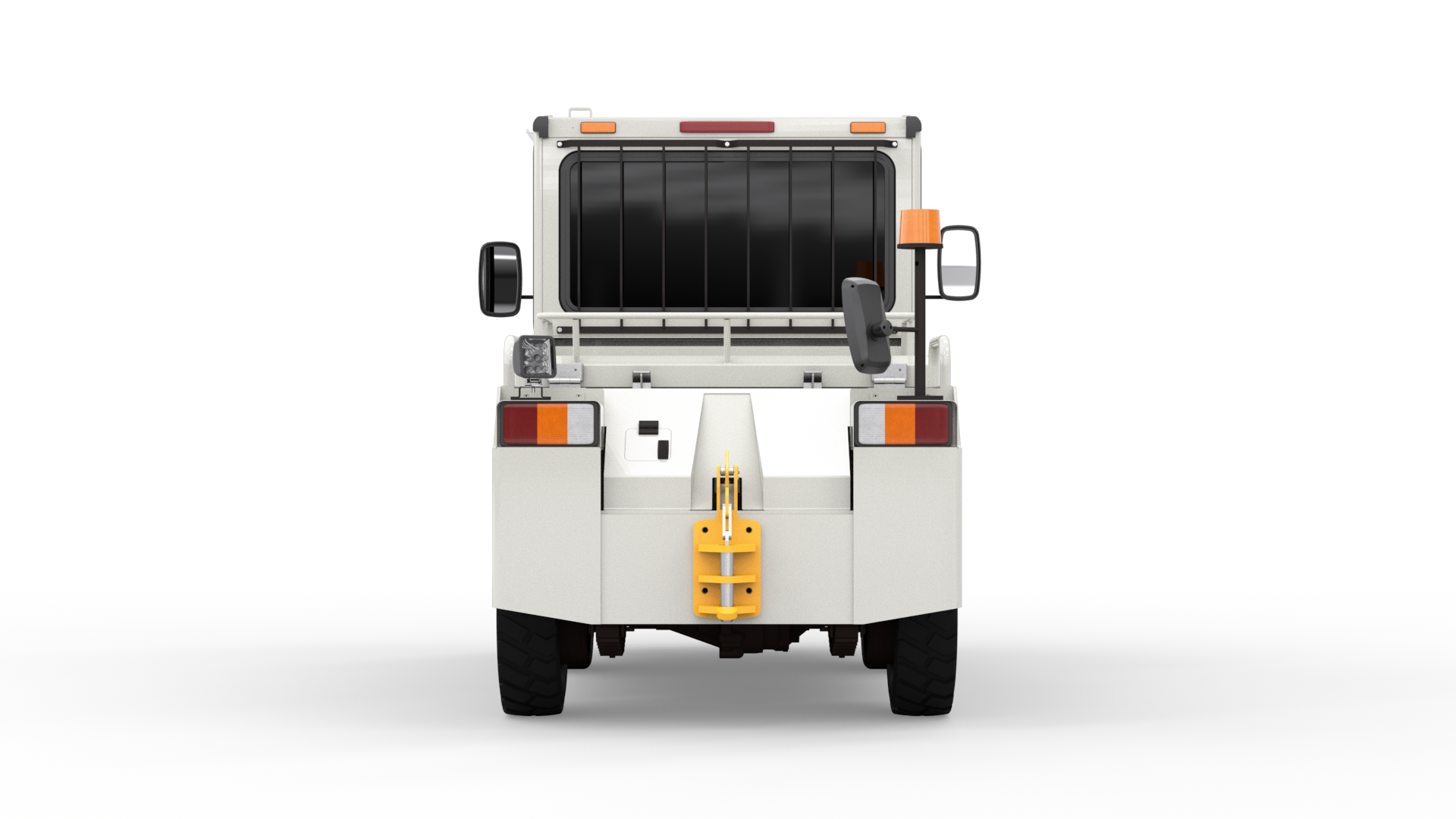

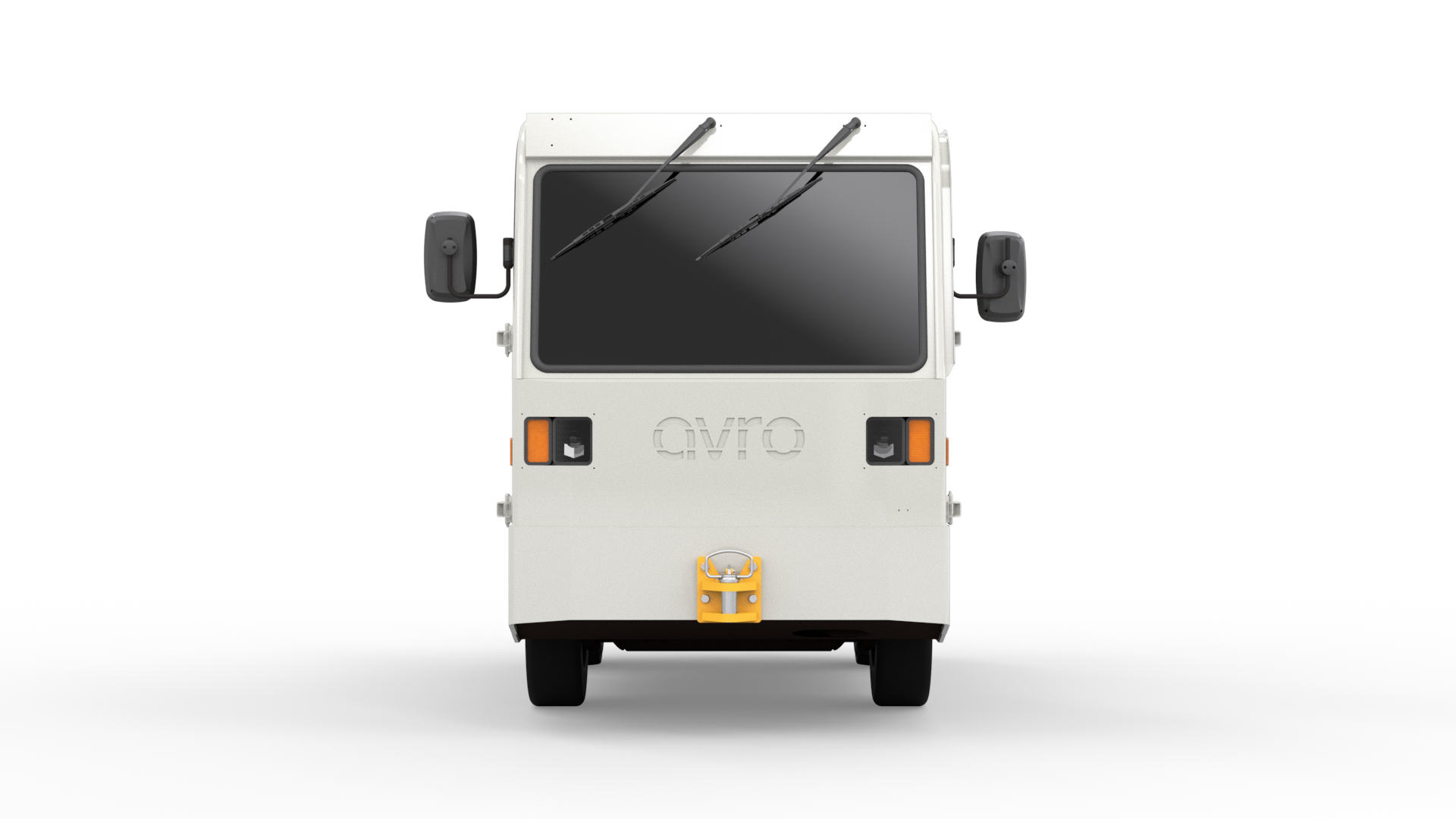

  • Front and rear towing couplers with cab control
  • Standard cab enclosure with windshield and wiper kit
  • Curtis control system
  • Vacuum assist hydraulic breaking system
  • Optional Onboard Telemetry System

Model: ST470LA
Power Type: Lead-Acid Battery 80v/540ah
Service Weight: 9921lbs (4500kg)

DIMENSIONS
Size (L x W x H): 125” (3165mm) X 56” (1420mm) X 76” (1940mm)
Wheelbase: 63” (1610mm)
Towing Couplers Height: 12” (305mm)
Ground Clearance: 5” (120mm)
Turning Radius: 136” (3450mm)

PERFORMANCE
Speed (Loaded/Unloaded): L: 10km/H U: 20km/H
Front Axle Load: 3300lb (1500kg)
Rear Axle Load: 6600lb (3000kg)
Max Drawbar Pull: 4700lb (21kn)

TIRES
Front, Rear: 6.50-10-10pr, 7.00-12-12pr

BATTERY SPECIFICATIONS
Operating Voltage: 80V
AH Capacity: 540AH

MOTOR
Rated Power: 23kW
Rated Torque: 1065 N-m
Rated Speed: 2063 Rpm
Rated Current 295A
Motor Rating: S2 60min

OPTIONS
Heat: Optional
Cab: Open, Fully Enclosed
