Description

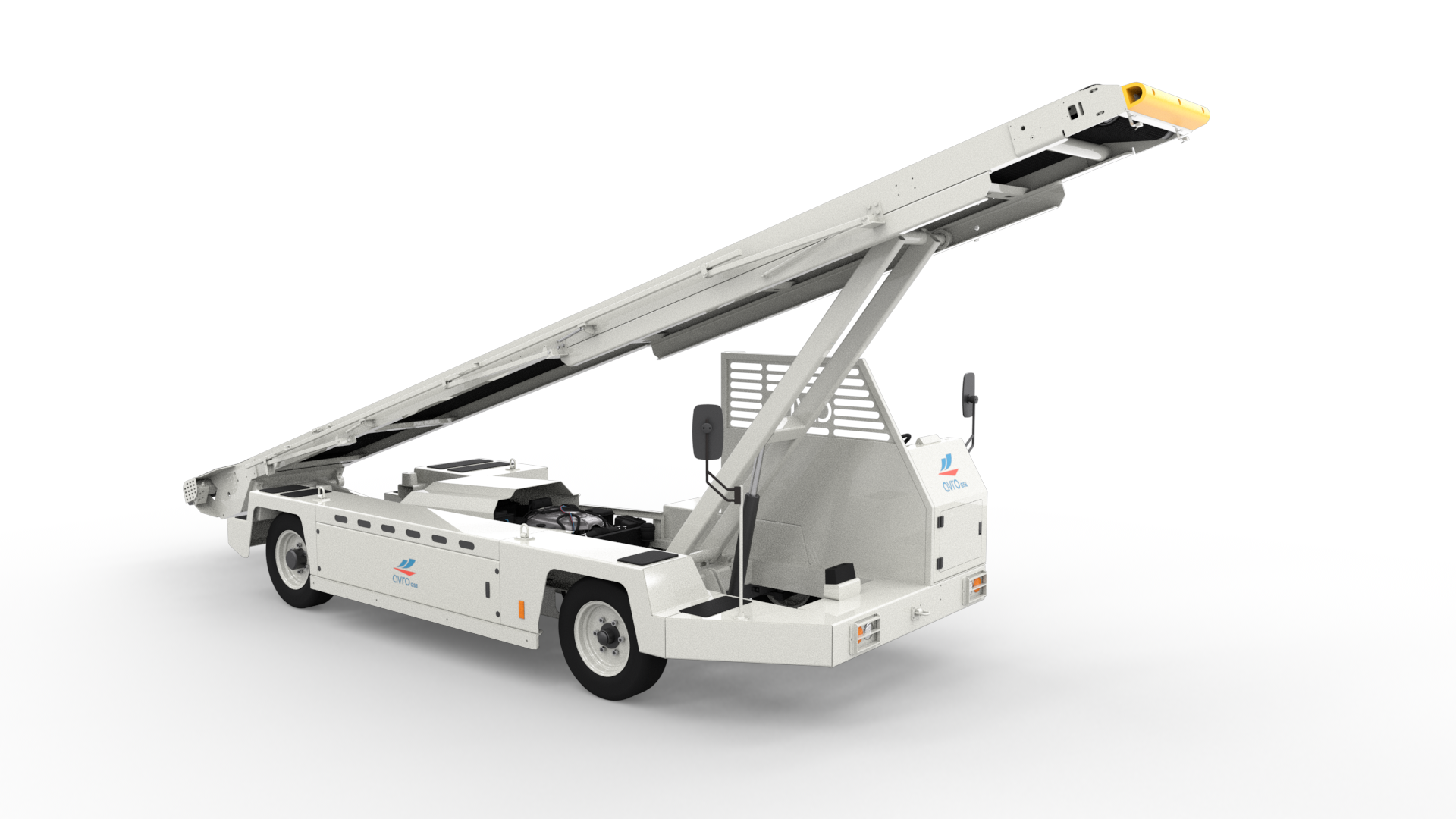

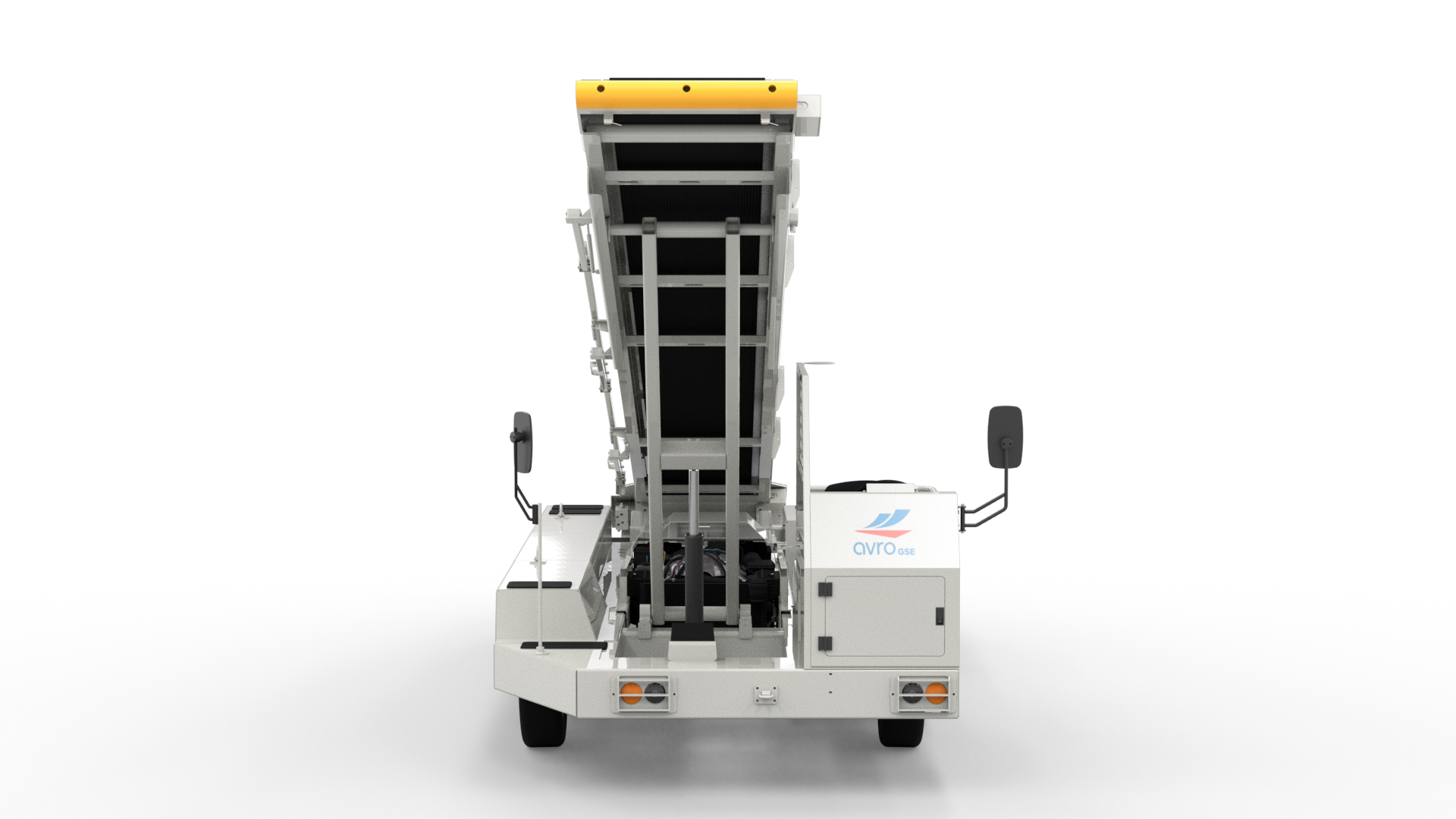

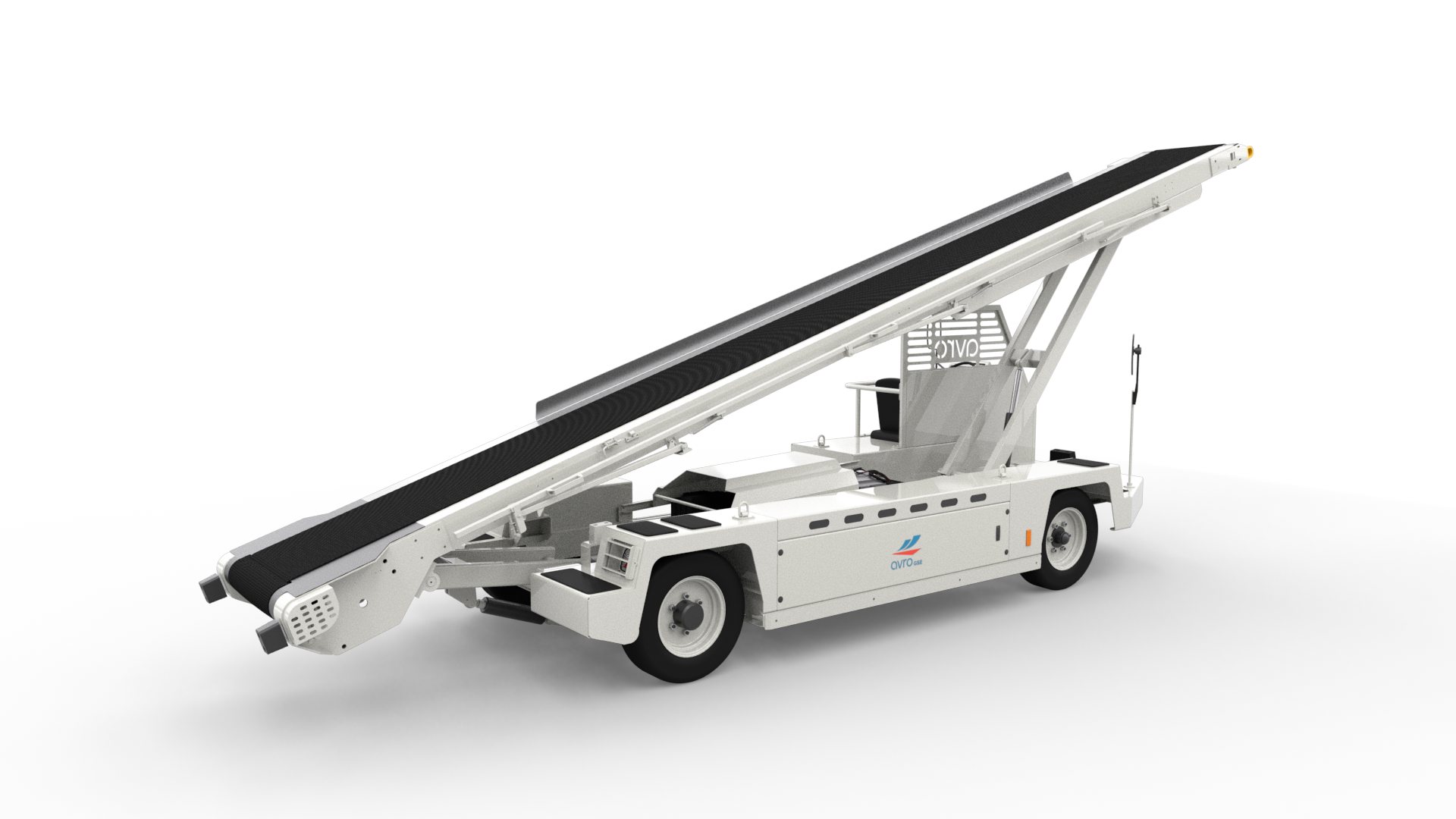

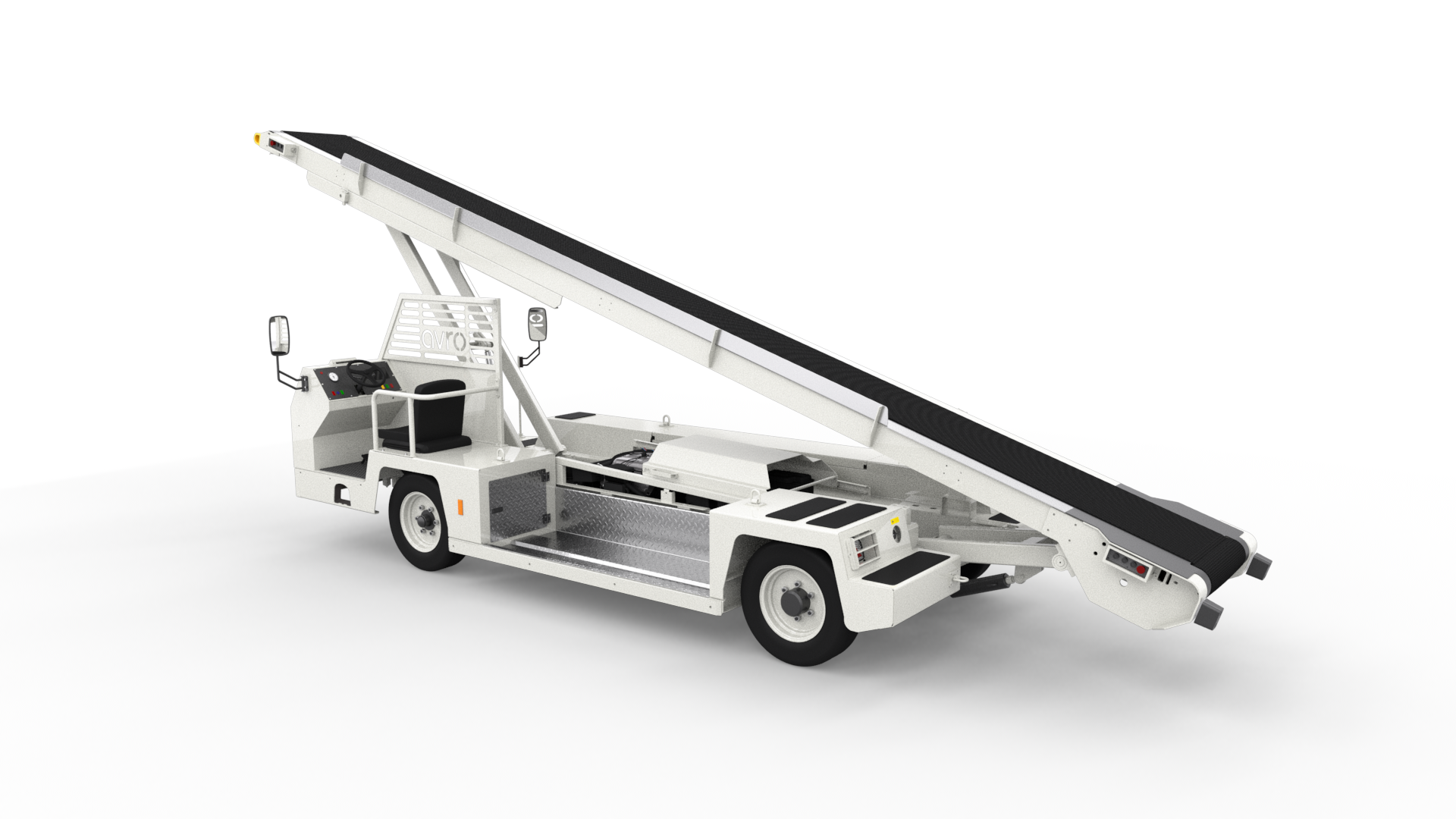

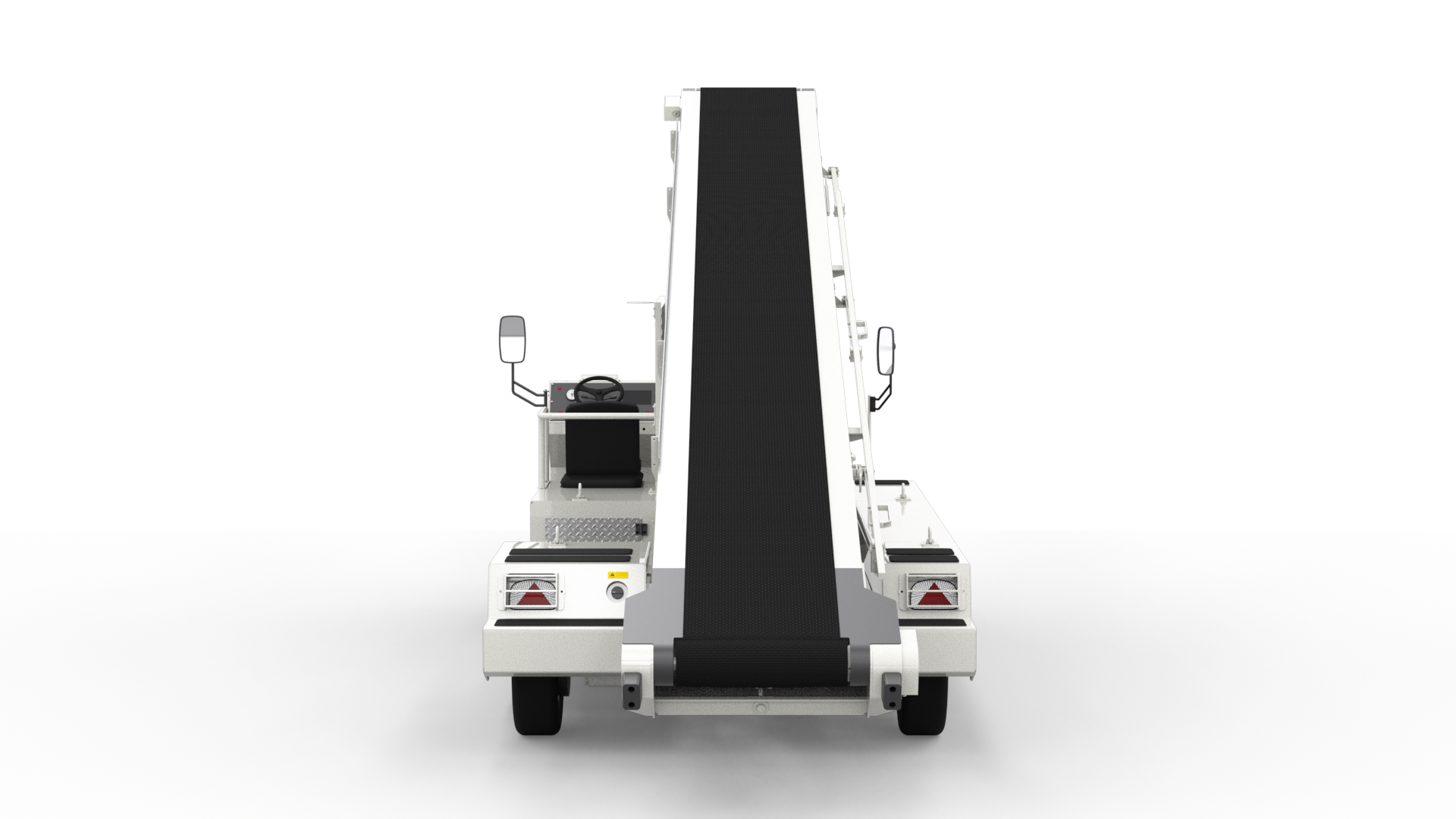

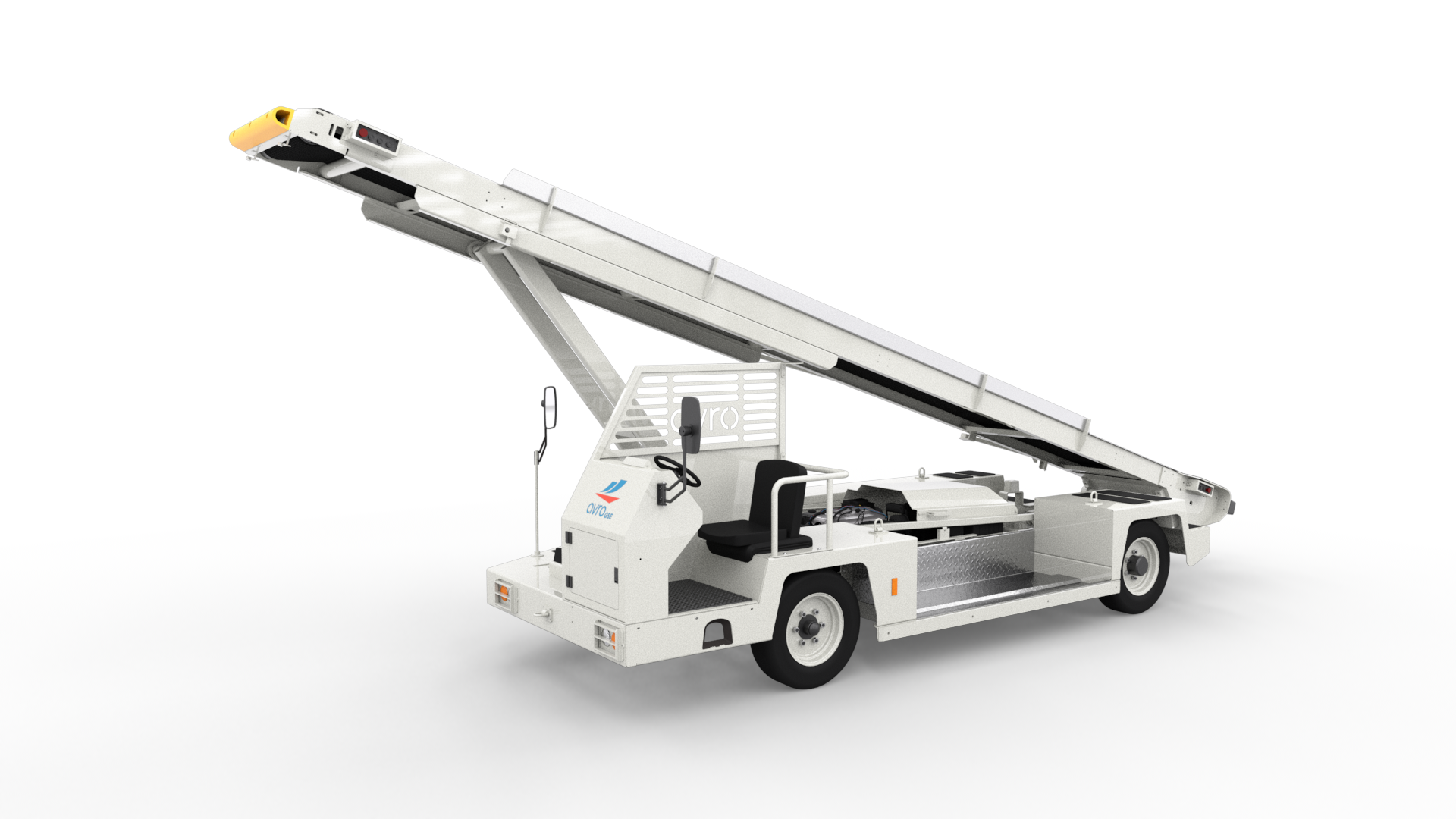

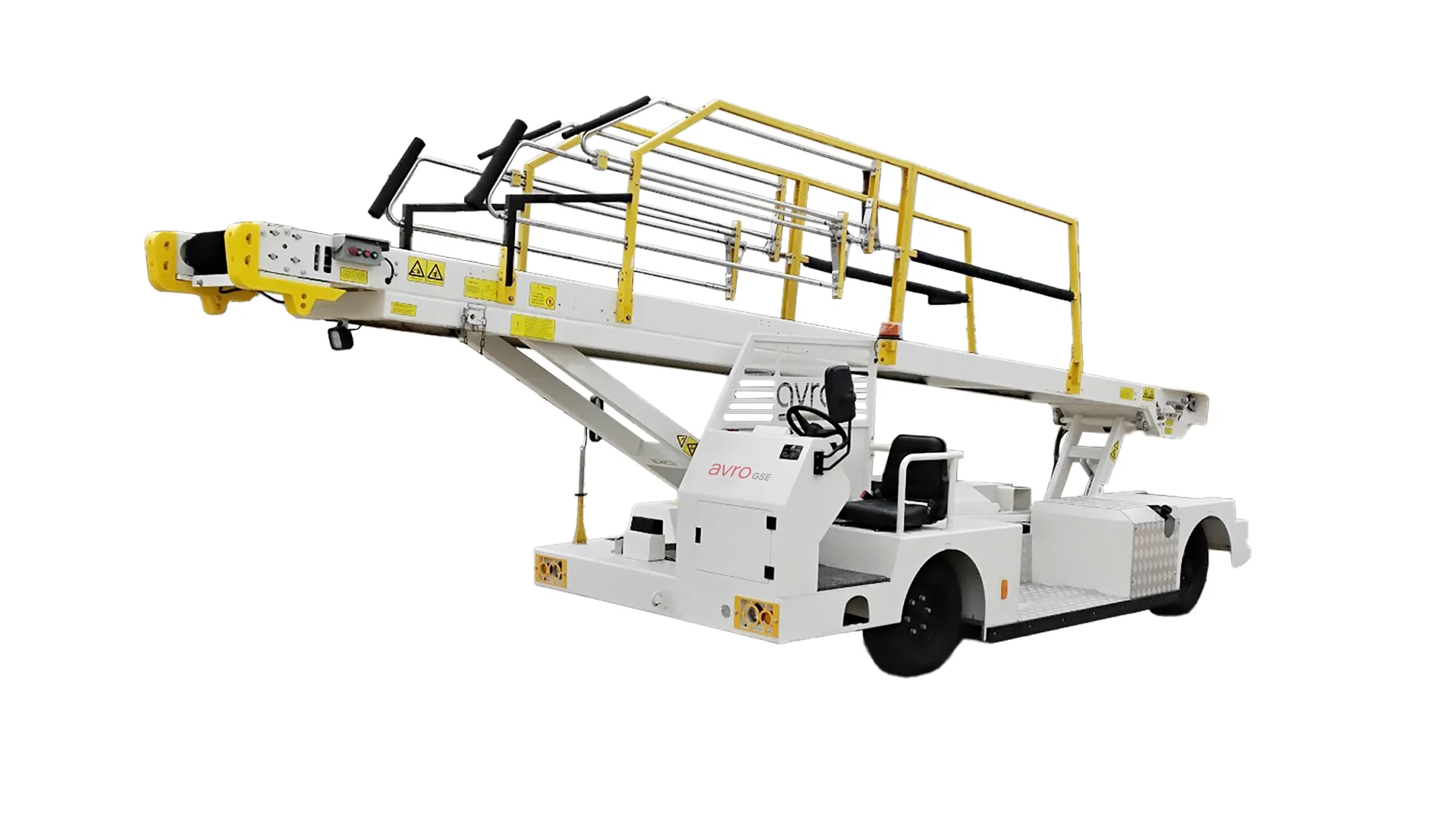

Avro’s next generation diesel belt loaders are leading edge performance, design, functionality. Designed to exceed expectations and deliver extraordinary ROI. Each loader features standard functionality such as hydraulic steering, Curtis controller with self-diagnosis functionality, vacuum assist hydraulic brakes, complete telematics for remote diagnostics and monitoring, along with our managed maintenance program.
Product Details
- Hydraulic steering system
- CAS (Collision Avoidance System) comes as standard
- Digital controller with self-diagnosis function
- Vacuum assist hydraulic breaks
- Front and rear belt height adjustment with variable belt speed
- Optional onboard telemetry system
| Model | BL30D | |
|---|---|---|
| Power Type | CUMMINS 2.8 L4 65hp (49kW) | |
| Service Weight | 3,800kg | |
| Working Range | ||
|---|---|---|
| Transfer Length | 301” (7,650mm) | |
| Transfer Width | 34” (870mm) | |
| Conveyor Belt Transmission Speed | 160-500mm/s | |
| Conveyor Belt Max Tilt Angle | 29° | |
| Turning Radius | 4,100/1,260mm | |
| Transfer Minimum Height (F/R) | 1180/880mm | |
| Dimensions | ||
|---|---|---|
| Size (L x W x H) | 315” (8,000mm) x 84” (2,120mm) x 59” (1,500mm) | |
| Wheelbase | 118” (3,000mm) | |
| Ground Clearance | 6” (150mm) | |
| Turning Radius | 7,600mm | |
| Max Approach Angle | 16° | |
| Min Departure Angle | 17° | |
| Tire | 225/70 R15 | |
| Performance | ||
|---|---|---|
| Travel Speed (No Load) | 28km/hr | |
| Front Axle Load | 2,400kg | |
| Rear Axle Load | 3,000kg | |
| Max. Gradeability | 10% | |
| Hydraulic System | ||
|---|---|---|
| Operating Pressure | 8-12 Mpa | |
| Max Operating Pressure | 14 Mpa | |
| Hydraulic Transmission Motor Displacement | 0.4L | |
| Hydraulic Oil Tank Capacity | 70L | |
