Description

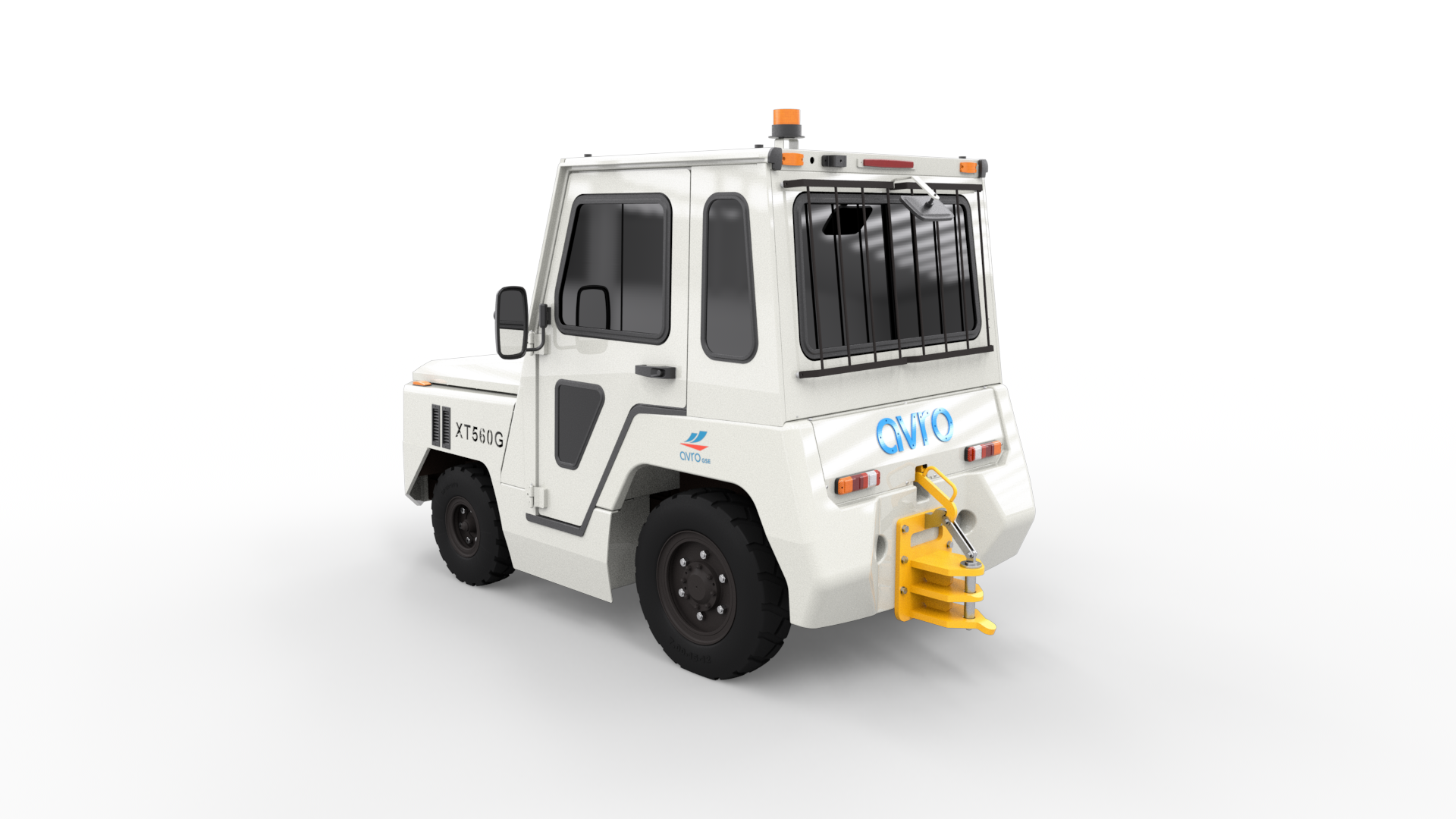

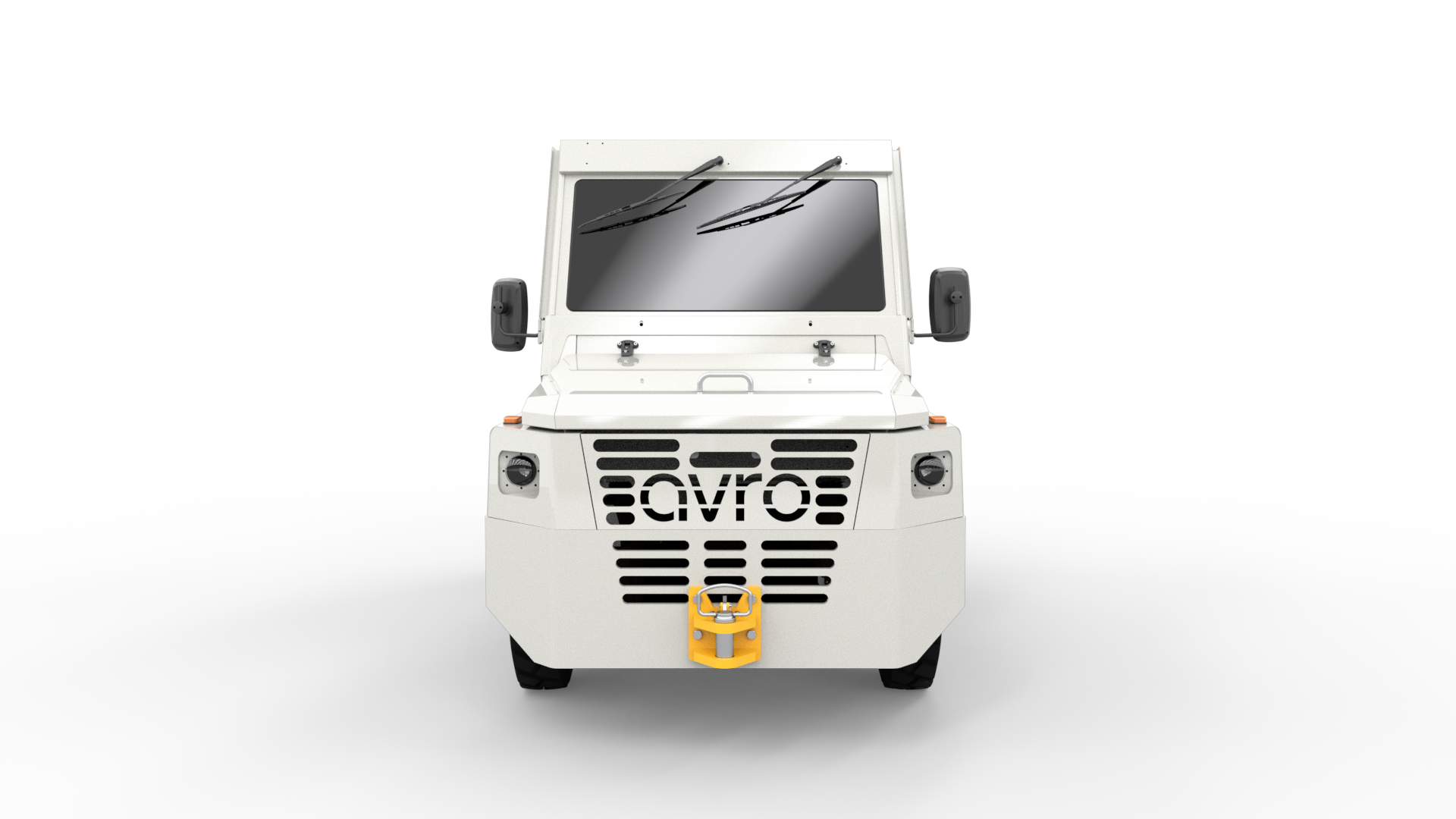

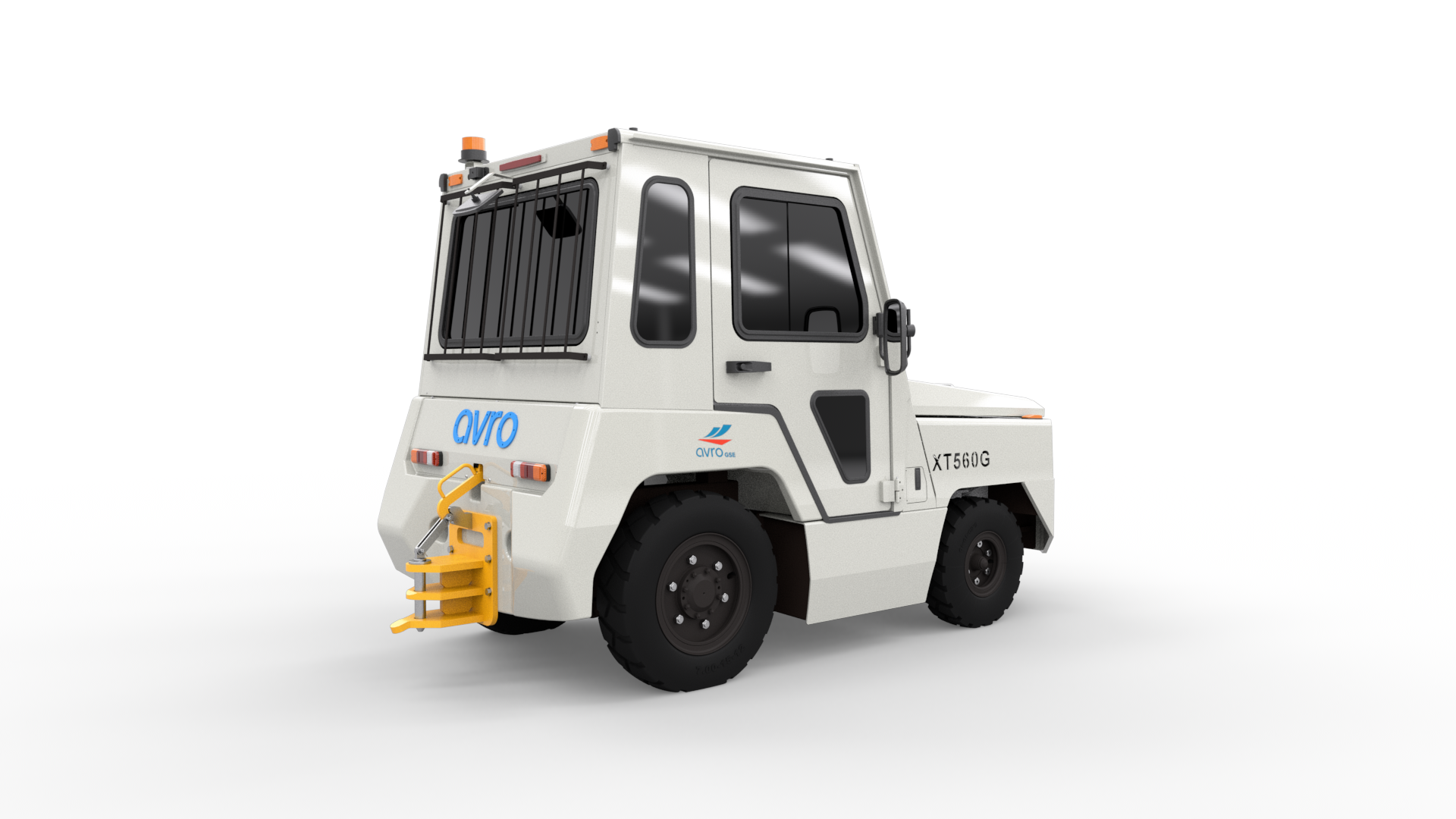

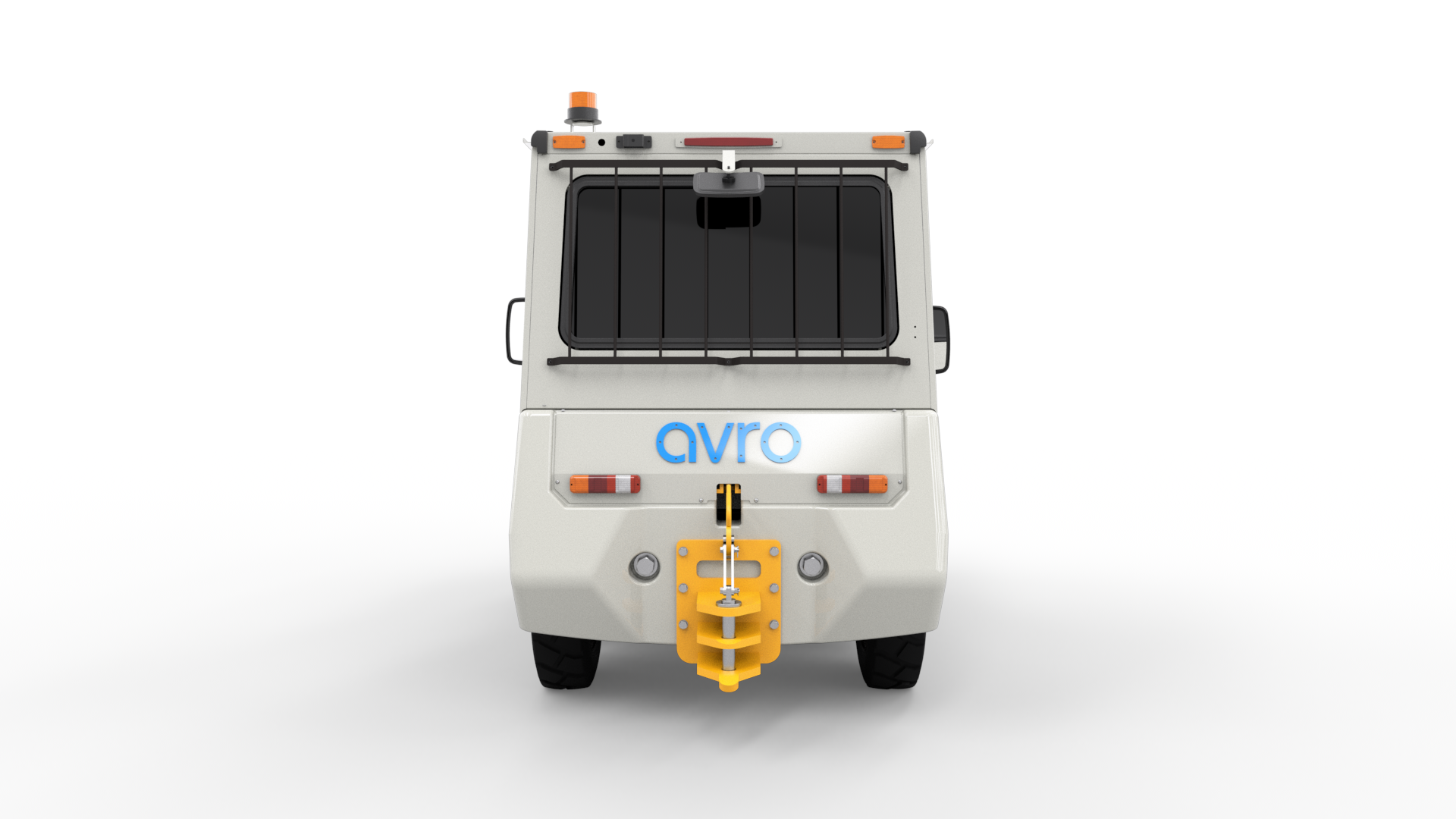

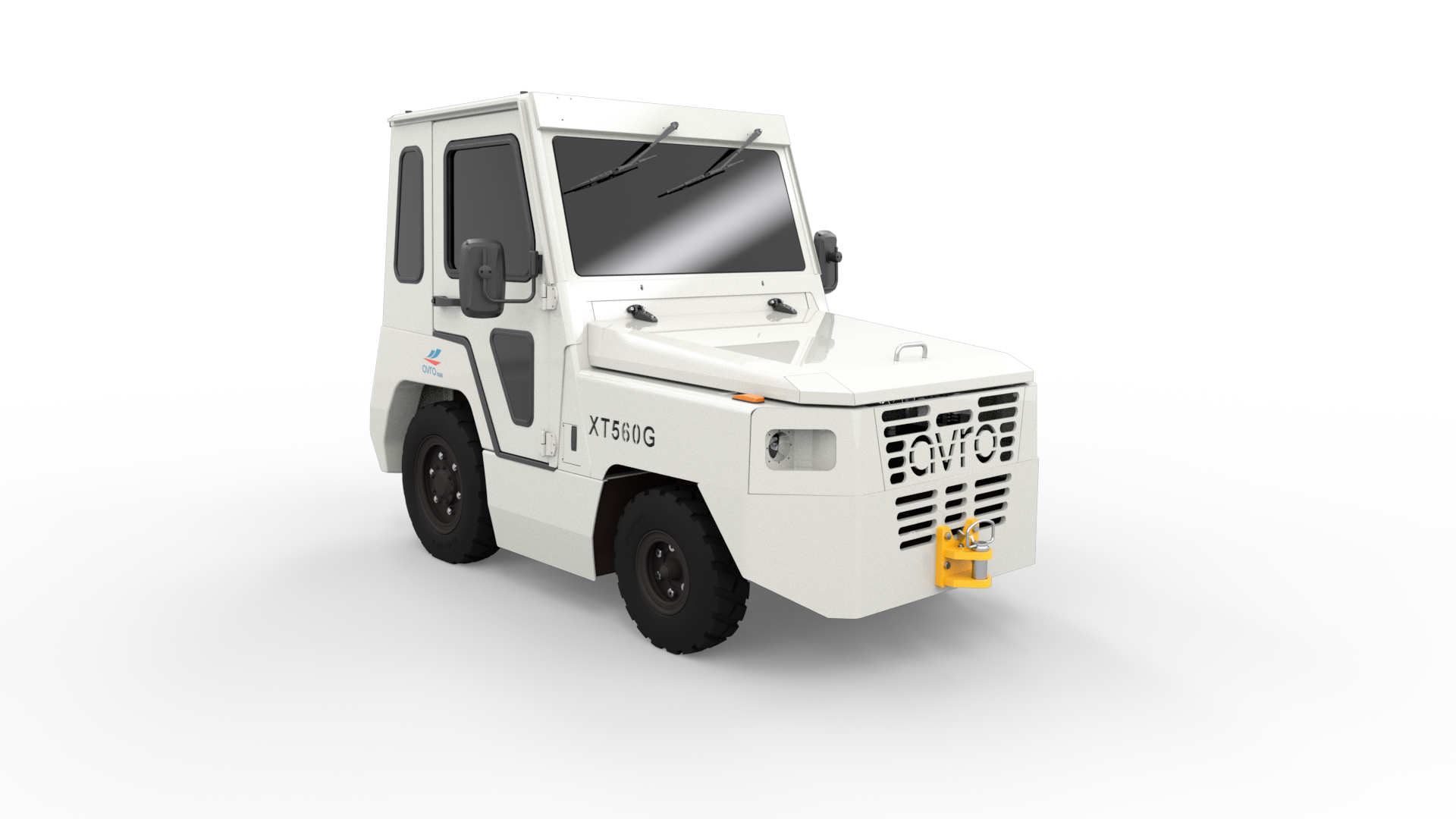

Our Avro XT560G Baggage Tractor is gasoline-powered and is Avro’s most popular baggage tractor model. Designed to exceed expectations and deliver extraordinary ROI with a DBP 0f 5,600lb, it’s no wonder this model is a popular choice with ground handlers!
Product Details
- Hydraulic steering
- Front and rear towing couplers with cab control
- Standard cab enclosure with windshield and wiper kit
- Digital controller with self-diagnosis function
- Vacuum assist hydraulic breaking system
- Standard heating
- Optional Onboard Telemetry System
| Performance | ||
|---|---|---|
| Model | XT560G | |
| Power Type | Gasoline | |
| DBP | 5,600Ibf (25kN) | |
| Max Speed Forward | 21mph (35km/h) | |
| Engine | |
|---|---|
| Make and Model | PSl 2.4 L4 49.8hp (37kW) |
| Transmission | |
|---|---|
| Make & Model | OKAMURA 2F/1R |
| Weight | |
|---|---|
| Service Weight | 9,900lb (4,500kg) |
| Axle | |
|---|---|
| Capacity – F/R | 3,500 / 7,000 (lb) |
| Main Dimensions | ||
|---|---|---|
| Height with Cabin | 78″ (2,000mm) | |
| Overall Length | 122″ (3,090mm) | |
| Overall Width | 57″ (1,450mm) | |
| Wheel Base | 63″ (1,610mm) | |
| Ground Clearance | 6″ (150mm) | |
| Turning Radius | 116″ (2,950mm) | |
| Tire (Common Truck Tires) | ||
|---|---|---|
| Type | Pneumatic | |
| Front | 6.50-10-10PR | |
| Rear | 7.00-15-12PR | |
| Optional | |
|---|---|
| Rubber bumpers (front and side) | |
| Cab corner bumpers | |
| Vinyl doors | |
| E-hollard hitch | |
| Backup camera with display screen | |
| Diagnostic Software | |
Avro GSE XT560G Tractor MY2018-2021 Parts & Service Manual - V1.4
Okamura Transmission Manual
PSI 2.4L Engine Service Manual
PSI 2.4L Engine Parts Manual
PSI 2.4L Engine Wiring Diagram 36300022
Avro GSE XT560G Tractor MY2023 Parts Service Manual - V1.0
Avro GSE XT560G Tractor MY2024 Parts Service Manual - V1.0.pdf
